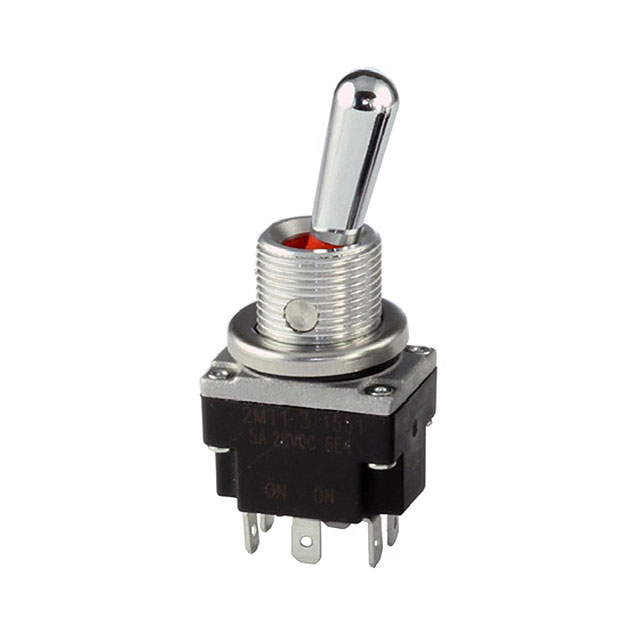

2MT1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH TOGGLE DPDT 5A 28V
| Part | Electrical Life | Actuator Length [x] | Switch Function | Illumination | Circuit | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Termination Style | Bushing Thread | Actuator Type | Ingress Protection | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 16.87 mm | On-On | Non-Illuminated | DPDT | 5 A | 12.45 mm | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 15/32-32 | Standard Round | IP67 - Dust Tight Waterproof | Panel Mount | 85 °C | -40 C |
 Honeywell Sensing and Productivity Solutions | 60000 Cycles | 16.87 mm | On-Mom | Non-Illuminated | DPST-NC | 5 A | 12.45 mm | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 15/32-32 | Standard Round | IP67 - Dust Tight Waterproof | Panel Mount | 85 °C | -40 C |
Honeywell Sensing and Productivity Solutions | 60000 Cycles | 16.87 mm | Off-Mom | Non-Illuminated | DPST-NO | 5 A | 12.45 mm | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 15/32-32 | Standard Round | IP67 - Dust Tight Waterproof | Panel Mount | 85 °C | -40 C |
