C14621R010 Series

Catalog

CONN HOOD CPLNG BOTTOM SZE10 M20

Part	Style	Housing Material	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Lock Location	Size	Features	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size

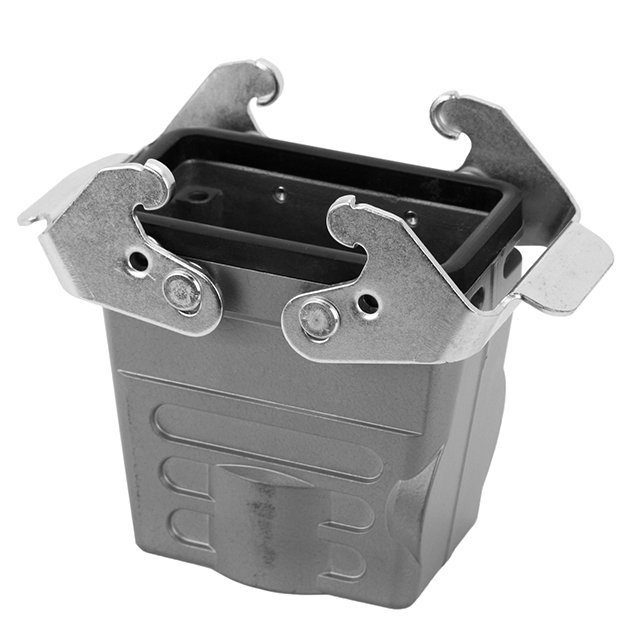

Amphenol Tuchel Industrial C14621R0108521	Bottom Entry Top or Bottom Entry	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood - Coupling	Locking Clip (2) on Hood Top	E10	Cable to Cable	-40 C	100 °C	M20

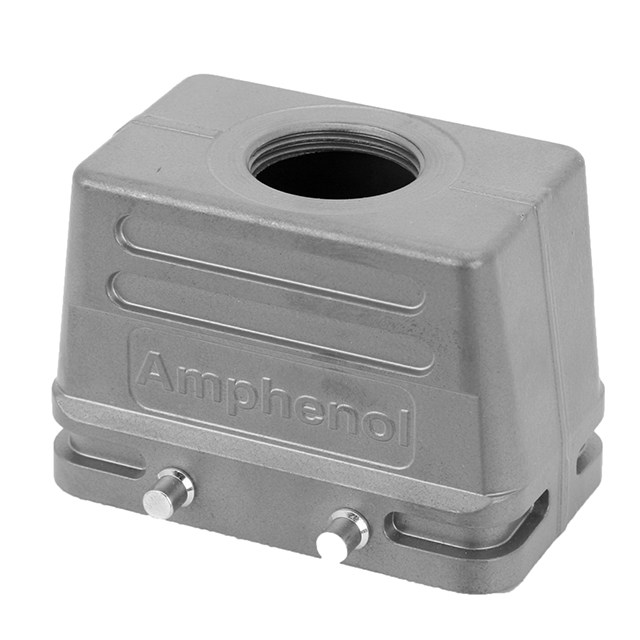

Amphenol Tuchel Industrial C14621R0106001	Top Entry	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Locking Clip (2) on Base Bottom	E10		-40 C	100 °C	M25

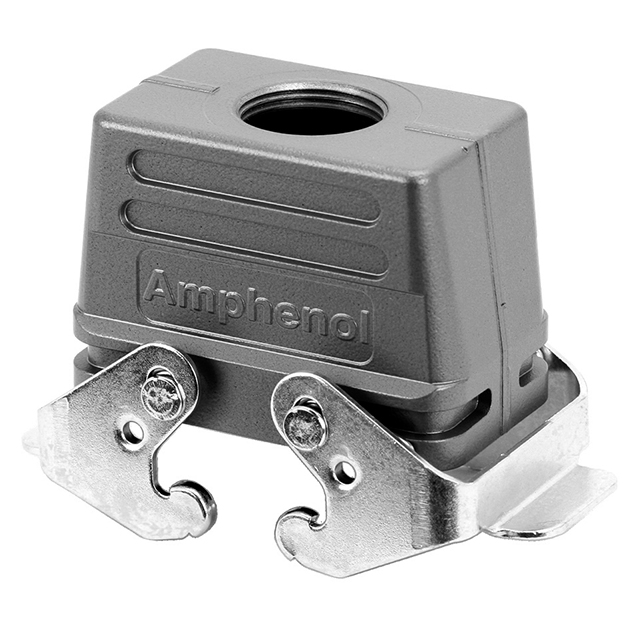

Amphenol Tuchel Industrial C14621R0106004	Top Entry	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.161 in	62.5 mm	53 mm	29.5 mm	2.461 "	2.087 in	Hood	Locking Clip (1) on Base Bottom	A10		-40 C	100 °C	M25

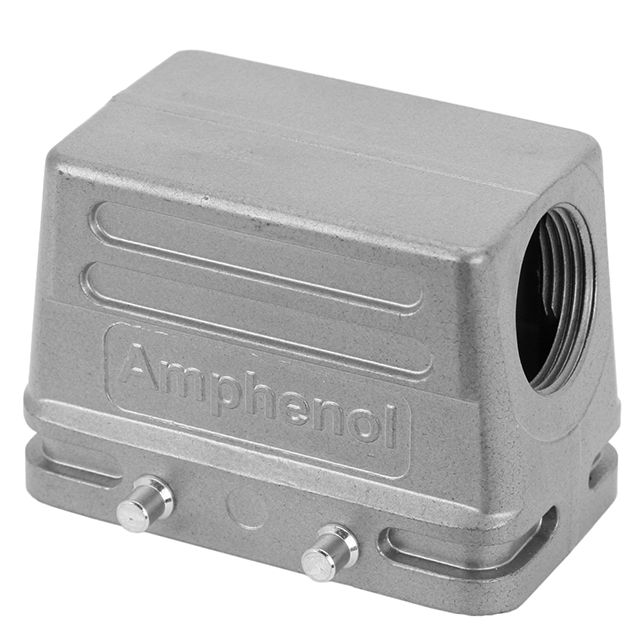

Amphenol Tuchel Industrial C14621R0105008	Side Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Locking Clip (2) on Base Bottom	E10		-40 C	100 °C	M32

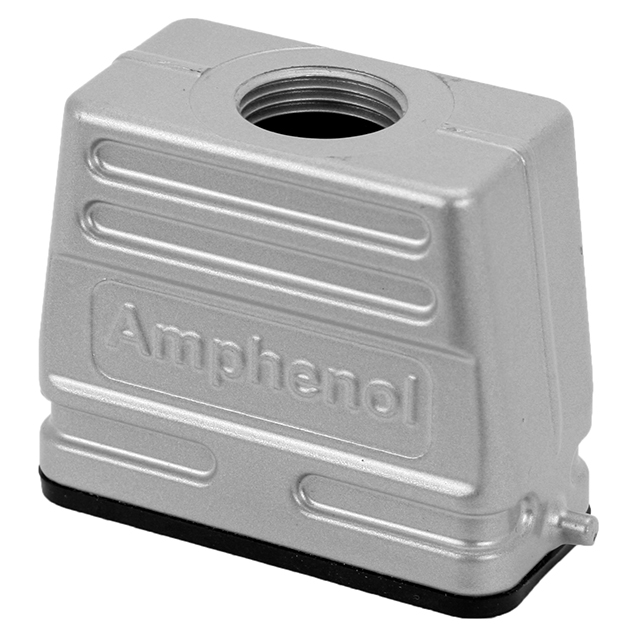

Amphenol Tuchel Industrial C14621R0106028	Top Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Locking Clip (2) on Hood	E10		-40 C	100 °C	M32

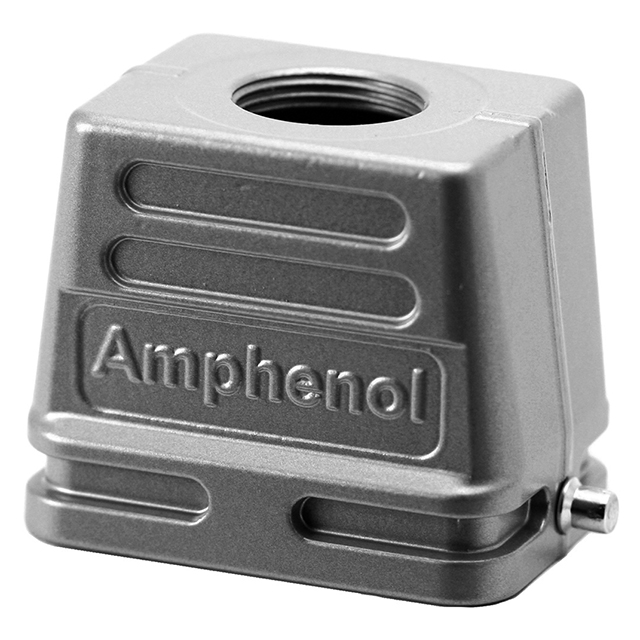

Amphenol Tuchel Industrial C14621R0106068	Top Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Locking Clip (1) on Base Bottom	E10		-40 C	100 °C	M32
