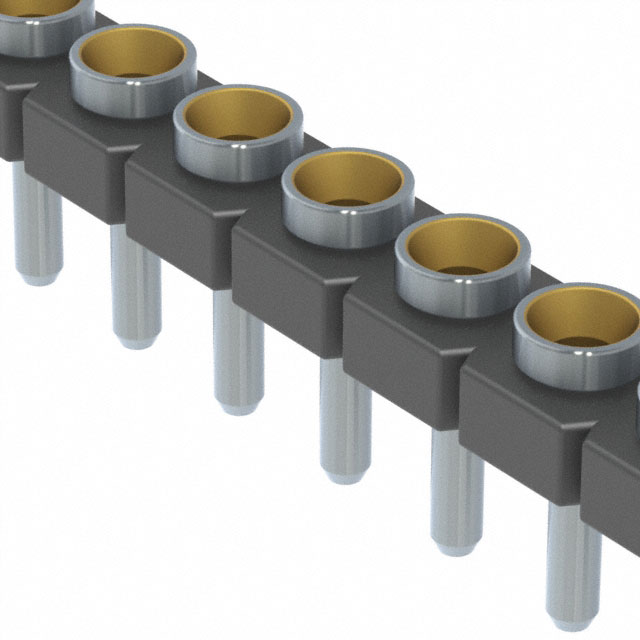

SL-114 Series
Headers & Wire Housings .100" Low Profile Single Row Screw Machine Socket Strip
Manufacturer: Samtec Inc.
Catalog
Headers & Wire Housings .100" Low Profile Single Row Screw Machine Socket Strip
...
| Part | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Height | Insulation Height | Mounting Type | Insulation Color | Contact Finish - Mating | Contact Shape | Termination | Insulation Material | Number of Positions | Contact Material | Fastening Type | Connector Type | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 3.1 mm | 0.122 in | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | 14 | Beryllium Copper | Push-Pull | Receptacle | 0.108 in | 2.75 mm | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | ||||||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 3.1 mm | 0.122 in | Through Hole | Black | Circular | Solder | Liquid Crystal Polymer (LCP) | 10 | Beryllium Copper | Push-Pull | Receptacle | 0.108 in | 2.75 mm | Female Socket | All | -55 °C | 105 ░C | Tin | ||||||||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 1.27 mm | 0.05 in | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | 13 | Beryllium Copper | Push-Pull | Receptacle | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | Gold | 10 çin | 0.25 çm | 2.08 mm | 0.082 " | |||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 1.27 mm | 0.05 in | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | 11 | Beryllium Copper | Push-Pull | Receptacle | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | ||||||||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 3.35 mm | 0.132 in | Through Hole | Black | Circular | Solder | Liquid Crystal Polymer (LCP) | 19 | Beryllium Copper | Push-Pull | Receptacle | 0.108 in | 2.75 mm | Female Socket | All | -55 °C | 105 ░C | Tin | ||||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 1 | 3.1 mm | 0.122 in | Through Hole | Black | Circular | Solder | Liquid Crystal Polymer (LCP) | 20 | Beryllium Copper | Push-Pull | Receptacle | 0.108 in | 2.75 mm | Female Socket | All | -55 °C | 105 ░C | Tin | ||||||||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 1.27 mm | 0.05 in | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | Receptacle | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | Gold | 10 çin | 0.25 çm | ||||||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | 1.27 mm | 0.05 in | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | Receptacle | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | Gold | 10 çin | 0.25 çm | 16 | |||||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | 28 | Beryllium Copper | Push-Pull | Receptacle | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | Gold | 10 çin | 0.25 çm | 2.41 mm | 0.095 in | 0.095 in | 2.41 mm | |||||
 Samtec Inc. | 0.1 in | 2.54 mm | 1 | Through Hole | Black | Gold | Circular | Solder | Liquid Crystal Polymer (LCP) | 13 | Beryllium Copper | Push-Pull | Receptacle | 30 Áin | 0.76 Ám | Female Socket | All | -55 °C | 125 °C | 2.41 mm | 0.095 in | 0.095 in | 2.41 mm |
