KX14-30K Series

Catalog

CONN RCPT 30POS SMD GOLD

Part	Pitch	Pitch	Connector Type	Number of Rows [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions	Features	Mated Stacking Heights
JAE Electronics KX14-30K8D-E650E	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	Gold	0.1 Ám	4 Áin	0.376 in	9.55 mm	Surface Mount	30	Board Guide Solder Retention
JAE Electronics KX14-30K2D-E1000E	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	Gold	0.1 Ám	4 Áin	0.14 in	3.55 mm	Surface Mount	30	Board Guide Solder Retention	4 mm 5 mm 6 mm
JAE Electronics KX14-30K5D-E1000E	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	Gold	0.1 Ám	4 Áin	0.258 in	6.55 mm	Surface Mount	30	Board Guide Solder Retention	7 mm 8 mm 9 mm
JAE Electronics KX14-30K8DE	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	Gold	0.1 Ám	4 Áin	0.376 in	9.55 mm	Surface Mount	30	Board Guide Solder Retention

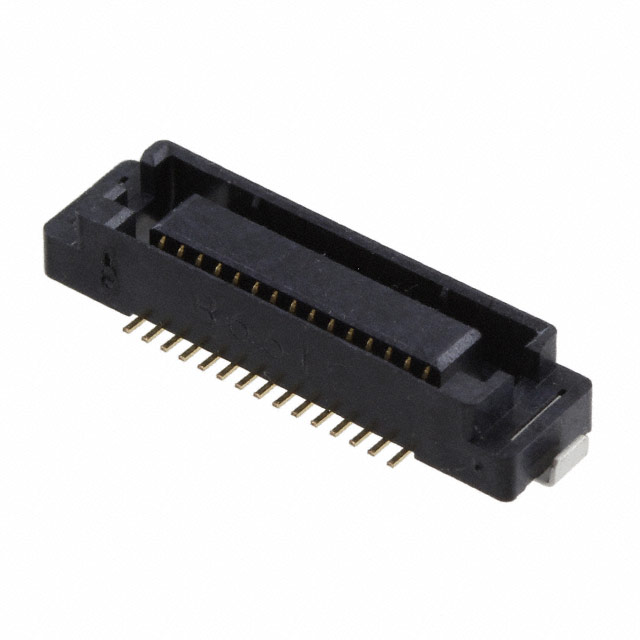

JAE Electronics KX14-30K2DE	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	Gold	0.1 Ám	4 Áin	0.14 in	3.55 mm	Surface Mount	30	Board Guide Solder Retention	4 mm 5 mm 6 mm

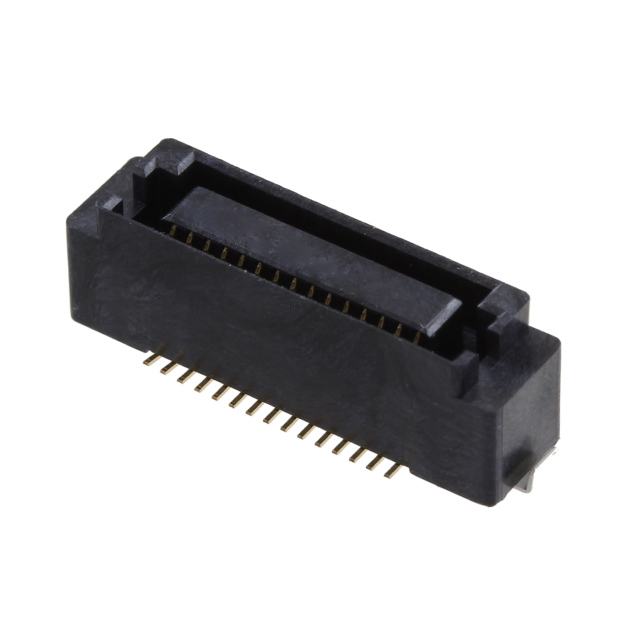

JAE Electronics KX14-30K5DE	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	Gold	0.1 Ám	4 Áin	0.258 in	6.55 mm	Surface Mount	30	Board Guide Solder Retention	7 mm 8 mm 9 mm
