109BJ12 Series

Catalog

BLOWERS & CENTRIFUGAL FANS DC BLOWER, 127X32MM, 12VDC

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Voltage - Rated	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Air Flow	Air Flow	Fan Type	Noise	Termination	Weight	Weight	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Power (Watts)	RPM	Features

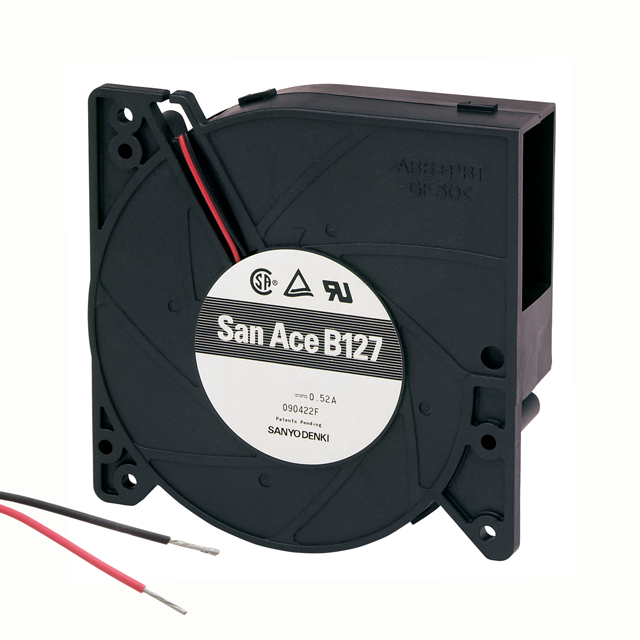

Sanyo Denki America Inc. 109BJ12HA2	Plastic	Plastic	0.52 A	40000 Hrs	10.2 VDC	13.8 VDC	CSA TUV UL	12 VDC	32 mm	-20 ░C	70 °C	Ball	27.5 CFM	0.77 m³/min	Blower	46 dB(A)	2 Wire Leads	0.639 lb	289.85 g	0.826 in H2O	205.8 Pa	126 mm	5 in	Square/Rounded	6.24 W	2400 RPM
Sanyo Denki America Inc. 109BJ12MC2	Plastic	Plastic	0.29 A	40000 Hrs	10.2 VDC	13.8 VDC	CSA TUV UL	12 VDC	32 mm	-20 ░C	70 °C	Ball	21.5 CFM	0.602 m³/min	Blower	40 dB(A)	3 Wire Leads	0.639 lb	289.85 g	0.441 in H2O	110 Pa	126 mm	5 in	Square/Rounded	3.48 W	1900 RPM	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109BJ12MD2	Plastic	Plastic	0.29 A	40000 Hrs	10.2 VDC	13.8 VDC	CSA TUV UL	12 VDC	32 mm	-20 ░C	70 °C	Ball	21.5 CFM	0.602 m³/min	Blower	40 dB(A)	3 Wire Leads	0.639 lb	289.85 g	0.441 in H2O	110 Pa	126 mm	5 in	Square/Rounded	3.48 W	1900 RPM	Locked Rotor Sensor
Sanyo Denki America Inc. 109BJ12MA2	Plastic	Plastic	0.29 A	40000 Hrs	10.2 VDC	13.8 VDC	CSA TUV UL	12 VDC	32 mm	-20 ░C	70 °C	Ball	21.5 CFM	0.602 m³/min	Blower	40 dB(A)	2 Wire Leads	0.639 lb	289.85 g	0.441 in H2O	110 Pa	126 mm	5 in	Square/Rounded	3.48 W	1900 RPM
