ACC06E22 Series

Manufacturer: Amphenol Industrial Operations

Catalog

CONN PLUG FMALE 2P SILVER CRIMP

Part	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Orientation	Contact Material	Shell Material	Shell Size - Insert	Contact Finish - Mating	Termination	Connector Type	Applications	Insert Material	Shielding	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Shell Finish	Ingress Protection	Backshell Material, Plating	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Qualification
Amphenol Industrial Operations ACC06E22-1R-003	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Olive Drab	N	Copper Alloy	Aluminum	22-1	Silver	Crimp	Female Sockets Plug	Automotive Industrial	Neoprene	Unshielded	0.75 in	19.05 mm	2	Olive Drab Cadmium	Environment Resistant	Aluminum Olive Drab Cadmium	Backshell Cable Clamp Coupling Nut
Amphenol Industrial Operations ACC06E22-22S-003	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Olive Drab	N	Copper Alloy	Aluminum		Silver	Crimp	Female Sockets Plug	Automotive Industrial		Unshielded	0.75 in	19.05 mm	4	Olive Drab Cadmium	Environment Resistant	Aluminum Olive Drab Cadmium	Backshell Cable Clamp Coupling Nut	22	22	MIL-5015 Derivative
Amphenol Industrial Operations ACC06E-22-22S(003)	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Olive Drab	N	Copper Alloy	Aluminum		Silver	Crimp	Female Sockets Plug	Automotive Industrial		Unshielded	0.75 in	19.05 mm	4	Olive Drab Cadmium	Environment Resistant		Cable Clamp Coupling Nut	22	22	MIL-5015 Derivative
Amphenol Industrial Operations ACC06E22-19S-003	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Olive Drab	N	Copper Alloy	Aluminum	22-19	Silver	Crimp	Female Sockets Plug	Automotive Industrial		Unshielded	0.75 in	19.05 mm	14	Olive Drab Cadmium	Environment Resistant	Aluminum Olive Drab Cadmium	Backshell Cable Clamp Coupling Nut			MIL-5015 Derivative
Amphenol Industrial Operations ACC06E22-23P-003	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Olive Drab	N	Copper Alloy	Aluminum		Silver	Crimp	Male Pins Plug	Automotive Industrial		Unshielded	0.75 in	19.05 mm	8	Olive Drab Cadmium	Environment Resistant	Aluminum Olive Drab Cadmium	Backshell Cable Clamp Coupling Nut	22	23	MIL-5015 Derivative
Amphenol Industrial Operations ACC06E22-14S-003	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Olive Drab	N	Copper Alloy	Aluminum	22-14	Silver	Crimp	Female Sockets Plug	Automotive Industrial		Unshielded	0.75 in	19.05 mm	19	Olive Drab Cadmium	Environment Resistant	Aluminum Olive Drab Cadmium	Backshell Cable Clamp Coupling Nut			MIL-5015 Derivative

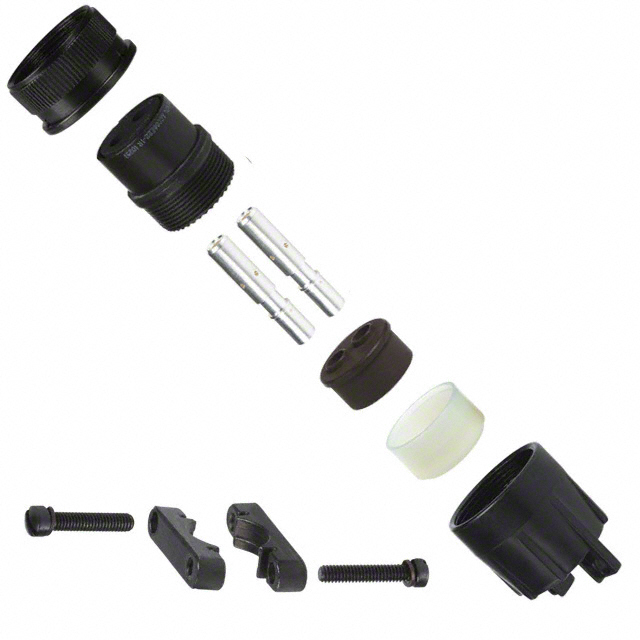

Amphenol Industrial Operations ACC06E22-1R(025)	Metal	-55 °C	125 °C	Free Hanging (In-Line)	Black	N		Aluminum	22-1	Silver	Crimp	Female Sockets Plug		Neoprene	Unshielded			2	Black Zinc Alloy	Environment Resistant	Aluminum Black Zinc Alloy	Backshell Cable Clamp Coupling Nut
