1100 Series

Catalog

CABLE GLAND 4.5-6MM PG9 BRASS

Part	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Includes	Color	Thread Length	Thread Length	Thread Size	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]

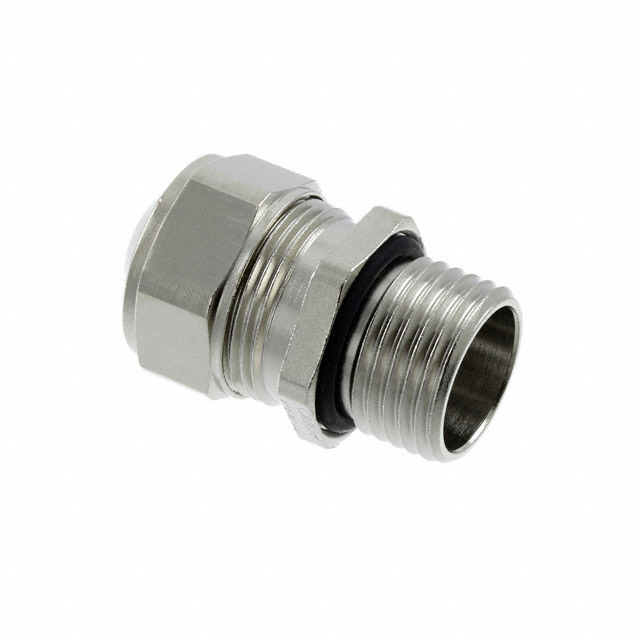

American Electrical Inc. A1100.09.060	0.598 in	15.2 mm	6 mm	0.236 in	-40 C	100 °C	Brass Nickel Plated	4.5 mm	0.177 in	IP68 IP69K	O-Ring Seal	Silver	0.394 in	10 mm	PG9	Cable Gland

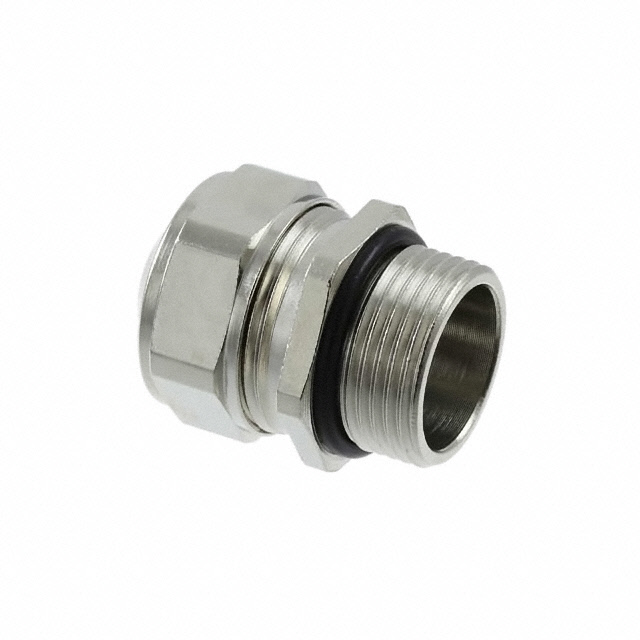

American Electrical Inc. A1100.13.110			11 mm		-40 C	100 °C	Brass Nickel Plated			IP68 IP69K	O-Ring Seal	Silver	0.394 in	10 mm	PG13	Cable Gland	0.433 in	0.315 in	8 mm
American Electrical Inc. A1100.16.150	0.886 in	22.5 mm			-40 C	100 °C	Brass Nickel Plated			IP68 IP69K	O-Ring Seal	Silver	0.394 in	10 mm	PG16	Cable Gland	0.591 in			11 mm	0.433 in	15 mm

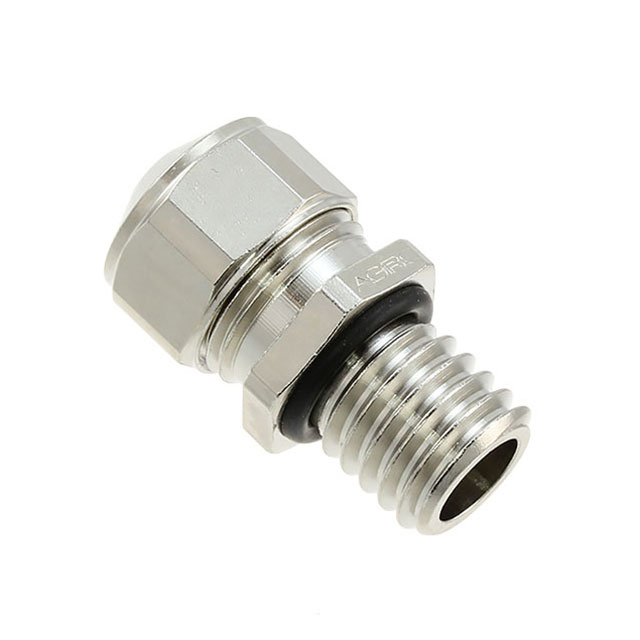

American Electrical Inc. A1100.10.040				0.157 in	-40 C	100 °C	Brass Nickel Plated	0.118 in		IP68 IP69K	O-Ring Seal Strain Relief	Silver	0.394 in	10 mm	M10x1.5	Cable Gland							4 mm	3 mm

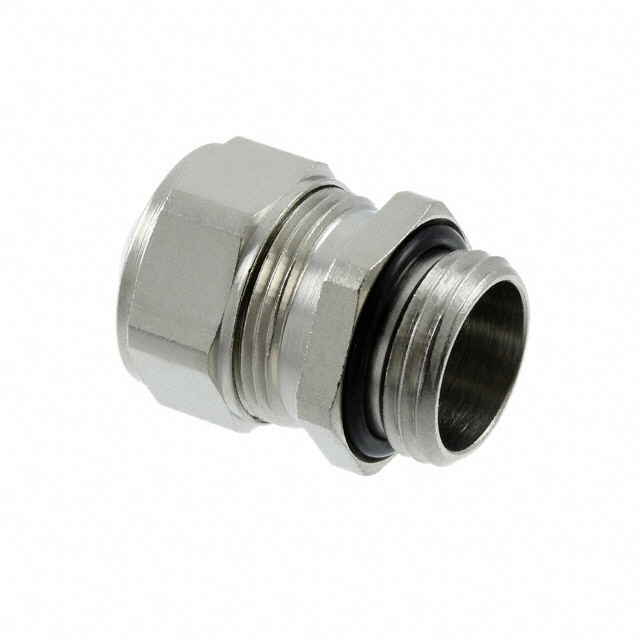

American Electrical Inc. A1100.09.045	0.598 in	15.2 mm		0.177 in	-40 C	100 °C	Brass Nickel Plated			IP68 IP69K	O-Ring Seal	Silver	0.394 in	10 mm	PG9	Cable Gland				3.5 mm	0.138 in		4.5 mm
American Electrical Inc. A1100.25.160	0.984 in	25 mm	16 mm	0.63 in	-40 C	100 °C	Brass Nickel Plated			IP68 IP69K	O-Ring Seal Strain Relief	Silver	0.433 in	11 mm	M25x1.5	Cable Gland					0.492 in				12.5 mm
American Electrical Inc. A1100.29.275	1.457 in	37 mm		1.083 in	-40 C	100 °C	Brass Nickel Plated	23 mm	0.906 "	IP68 IP69K	O-Ring Seal	Silver	0.472 in	12 mm	PG29	Cable Gland							27.5 mm
American Electrical Inc. A1100.25.125	0.984 in	25 mm	12.5 mm	0.492 in	-40 C	100 °C	Brass Nickel Plated	9.5 mm	0.374 in	IP68 IP69K	O-Ring Seal Strain Relief	Silver	0.433 in	11 mm	M25x1.5	Cable Gland

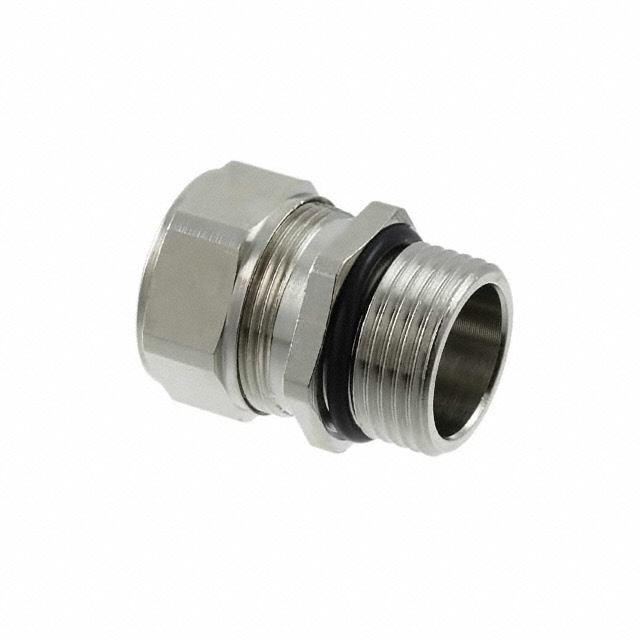

American Electrical Inc. A1100.11.120	0.732 in	18.6 mm			-40 C	100 °C	Brass Nickel Plated			IP68 IP69K	O-Ring Seal	Silver	0.394 in	10 mm	PG11	Cable Gland	0.472 in				0.335 in	12 mm			8.5 mm

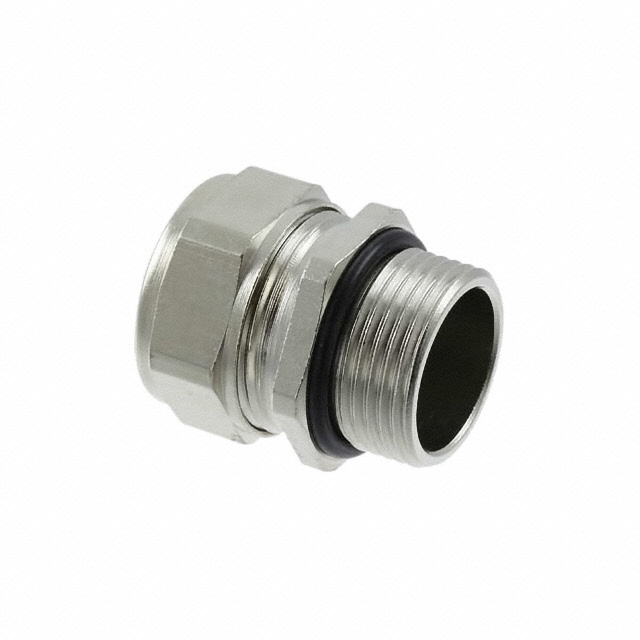

American Electrical Inc. A1100.13.080					-40 C	100 °C	Brass Nickel Plated	6 mm	0.236 in	IP68 IP69K	O-Ring Seal	Silver	0.394 in	10 mm	PG13	Cable Gland	0.315 in					8 mm
