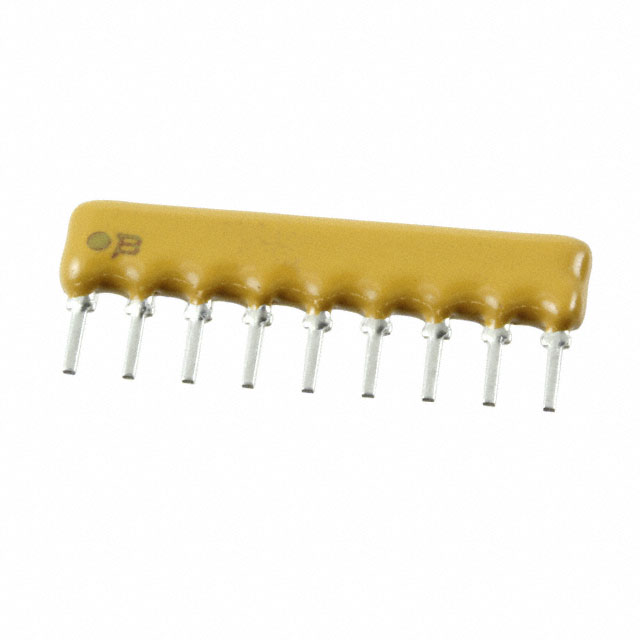

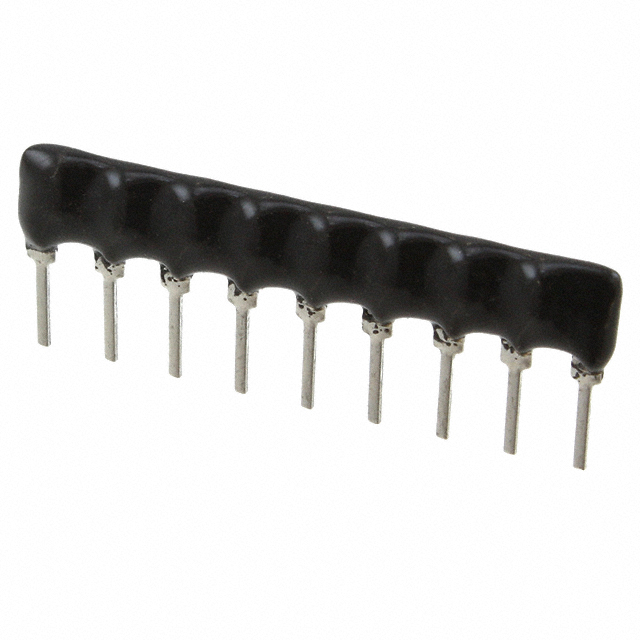

4609M Series
Manufacturer: Bourns Inc.
Beta
⌘K
RESISTOR NETWORK,THICK FILM,150OHMS,100WV,2+/-% TOL,-100,100PPM-TC,9010-CASE ROHS COMPLIANT: YES
| Part | Resistor-Ratio-Drift | Number of Pins | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Circuit Type | Supplier Device Package | Tolerance | Resistance (Ohms) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power Per Element | Number of Resistors | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Voltage - Rated | Number of Capacitors | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 50 ppm/°C | 9 | 9-SIP | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | Through Hole | Bussed | 9-SIP | 2 % | 150 Ohms | 6.35 mm | 0.25 in | 250 mW | 8 | -55 C | 125 °C | 100 ppm/°C | ||||||||
 Bourns Inc. | 9-SIP | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | Through Hole | Bussed | 20 % | 50 VDC | 8 | X7R | 5.08 mm | 0.2 in | 0.001 µF | |||||||||||||
 Bourns Inc. | 9-SIP | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | Through Hole | Bussed | 20 % | 50 VDC | 8 | X7R | 5.08 mm | 0.2 in | 2200 pF | |||||||||||||
Bourns Inc. | 50 ppm/°C | 9 | 9-SIP | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | Through Hole | Bussed | 9-SIP | 2 % | 470 Ohms | 6.35 mm | 0.25 in | 250 mW | 8 | -55 C | 125 °C | 100 ppm/°C | ||||||||
Bourns Inc. | 9-SIP | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | Through Hole | Bussed | 20 % | 50 VDC | 8 | X7R | 5.08 mm | 0.2 in | 0.022 µF | |||||||||||||
Bourns Inc. | 9-SIP | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | Through Hole | Bussed | 20 % | 50 VDC | 8 | X7R | 5.08 mm | 0.2 in | 10000 pF | |||||||||||||
Bourns Inc. | 9-SIP | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | Through Hole | Bussed | 20 % | 50 VDC | 8 | X7R | 5.08 mm | 0.2 in | 0.0047 µF | |||||||||||||
Bourns Inc. | 50 ppm/°C | 9 | 9-SIP | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | Through Hole | Bussed | 9-SIP | 2 % | 6.35 mm | 0.25 in | 250 mW | 8 | -55 C | 125 °C | 100 ppm/°C | 1k | ||||||||
Bourns Inc. | 50 ppm/°C | 9 | 9-SIP | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | Through Hole | Bussed | 9-SIP | 2 % | 6.35 mm | 0.25 in | 250 mW | 8 | -55 C | 125 °C | 100 ppm/°C | 2.7 k | ||||||||
Bourns Inc. | 9-SIP | 22.91 mm | 0.15 " | 0.902 in | 3.81 mm | Through Hole | Bussed | 10 % | 50 VDC | 8 | C0G NP0 | 5.08 mm | 0.2 in | 100 pF |
