T41104 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PLUG FMALE 5P SILVER SCREW

Part	Voltage Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Ingress Protection	Shell Finish	Backshell Material, Plating	Applications	Shielding	Connector Type	Contact Finish - Mating	Shell Size - Insert	Number of Positions	Insert Material [custom]	Insert Material [custom]	Primary Material	Orientation	Current Rating (Amps)	Features	Color	Mounting Type	Shell Material	Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors T4110402052-000	60 VDC	2.03 µm	80 µin	Bronze	0.315 in	0.236 in	8 mm	6 mm	IP67 - Dust Tight Waterproof	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Unshielded	Plug Female Sockets	Silver	M12-5	5	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Black Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C

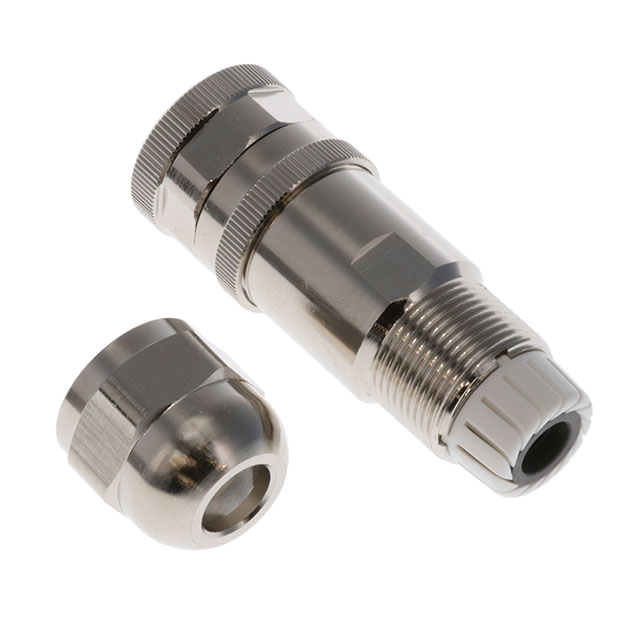

TE Connectivity AMP Connectors T4110412051-000	60 VDC			Zinc Alloy	0.315 in	0.236 in	8 mm	6 mm	IP67 - Dust Tight Waterproof	Nickel	Brass Nickel	Industrial	Shielded	Plug Female Sockets	Gold	M12-5	5	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110401032-000	250 V	2.03 µm	80 µin	Bronze	0.236 in	0.157 in	6 mm	4 mm	IP67 - Dust Tight Waterproof	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Unshielded	Plug Female Sockets	Silver	M12-3		Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Black Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C
TE Connectivity AMP Connectors T4110402042-000	250 V	2.03 µm	80 µin	Bronze	0.315 in	0.236 in	8 mm	6 mm	IP67 - Dust Tight Waterproof	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Unshielded	Plug Female Sockets	Silver	M12-4	4	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Black Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C
TE Connectivity AMP Connectors T4110411041-000	250 V			Zinc Alloy	0.236 in	0.157 in	6 mm	4 mm	IP67 - Dust Tight Waterproof	Nickel	Brass Nickel	Industrial	Shielded	Plug Female Sockets	Gold	M12-4	4	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110412042-000	250 V	2.03 µm	80 µin	Bronze	0.315 in	0.236 in	8 mm	6 mm	IP67 - Dust Tight Waterproof	Nickel	Brass Nickel	Industrial	Shielded	Plug Female Sockets	Silver	M12-4	4	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C
TE Connectivity AMP Connectors T4110411051-000	60 VDC			Zinc Alloy	0.236 in	0.157 in	6 mm	4 mm	IP67 - Dust Tight Waterproof	Nickel	Brass Nickel	Industrial	Shielded	Plug Female Sockets	Gold	M12-5	5	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110411031-000	250 V			Bronze	0.236 in	0.157 in	6 mm	4 mm	IP67 - Dust Tight Waterproof	Nickel	Brass Nickel	Industrial	Shielded	Plug Female Sockets	Gold	M12-3		Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C	0.076 µm	3 µin

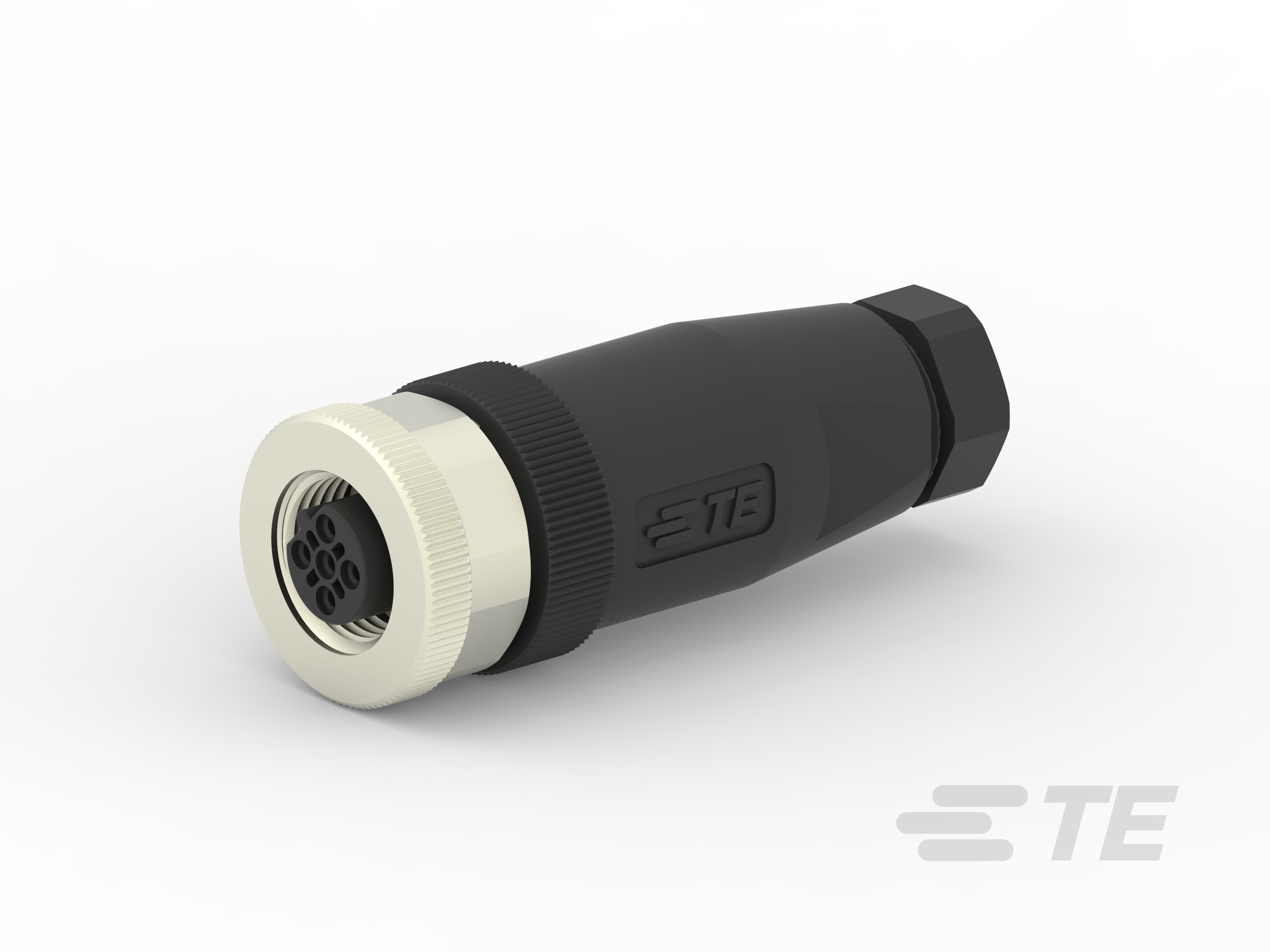

TE Connectivity AMP Connectors T4110401031-000	250 V			Zinc Alloy	0.236 in	0.157 in	6 mm	4 mm	IP67 - Dust Tight Waterproof	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Unshielded	Plug Female Sockets	Gold	M12-3		Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Black Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C	0.076 µm	3 µin

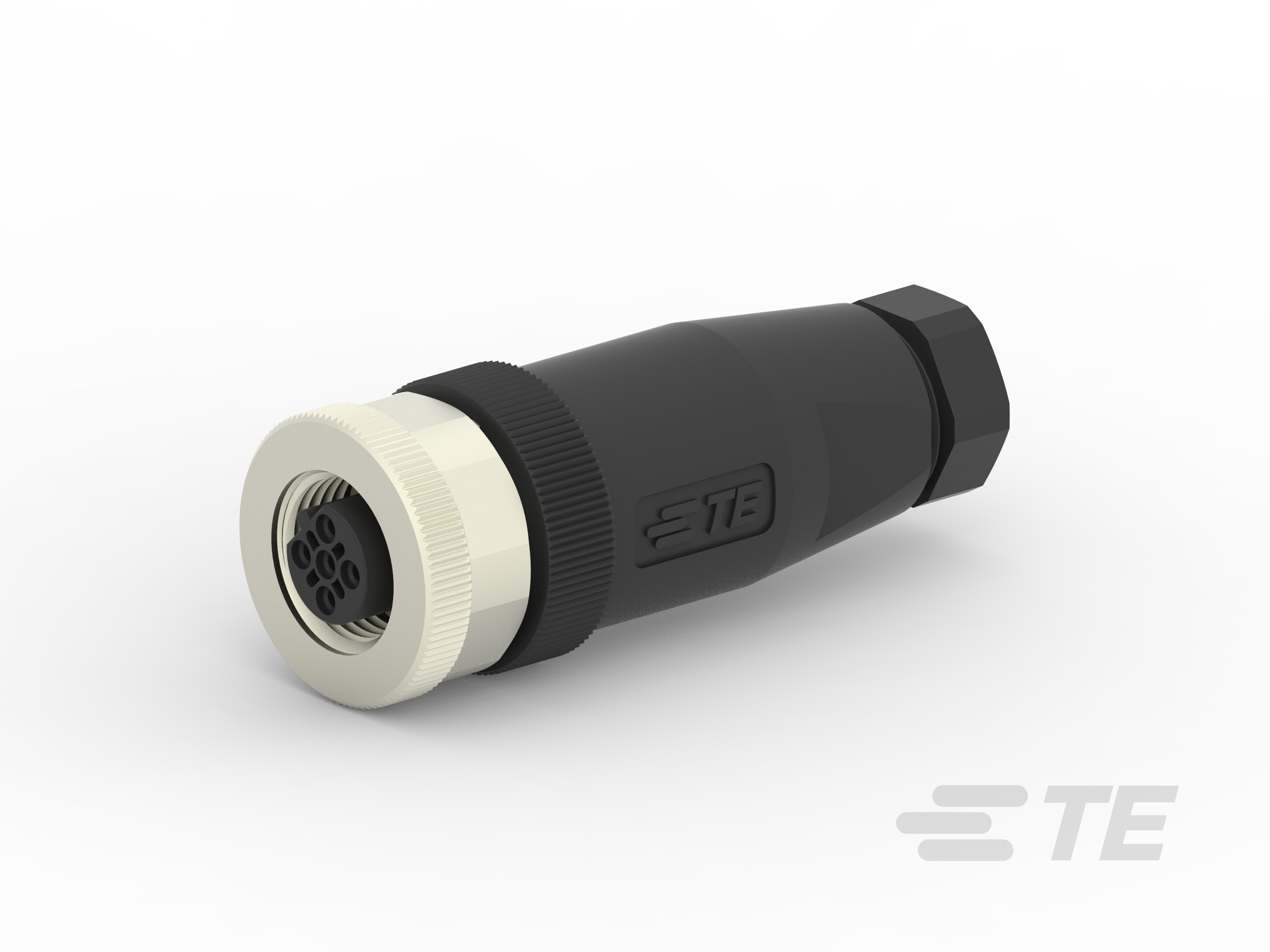

TE Connectivity AMP Connectors T4110401051-000	60 VDC			Zinc Alloy	0.236 in	0.157 in	6 mm	4 mm	IP67 - Dust Tight Waterproof	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Unshielded	Plug Female Sockets	Gold	M12-5	5	Nylon	Polyamide (PA)	Metal	B	4 A	Backshell Coupling Nut	Black Silver	Free Hanging (In-Line)	Brass	Screw	Threaded	85 °C	-40 C	0.076 µm	3 µin
