- Series
Manufacturer: Taiwan Semiconductor Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

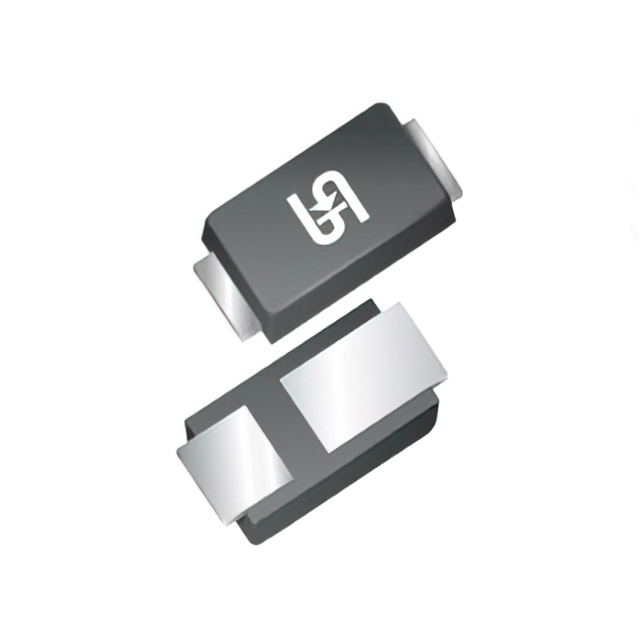

RECTIFIERS 0.8A, 200V, STANDARD RECOVERY RECTIFIER
| Part | Mounting Type | Technology | Current - Reverse Leakage | Package / Case | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Capacitance | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Voltage - Forward (Vf) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Package Name | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiwan Semiconductor Corporation | Surface Mount | Standard | 1 µA | SOD-123W | 200 V | 800 mA | 7 pF | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 1.1 V | 150 °C | -55 °C | SOD-123W | AEC-Q101 | Automotive |
