1977068 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

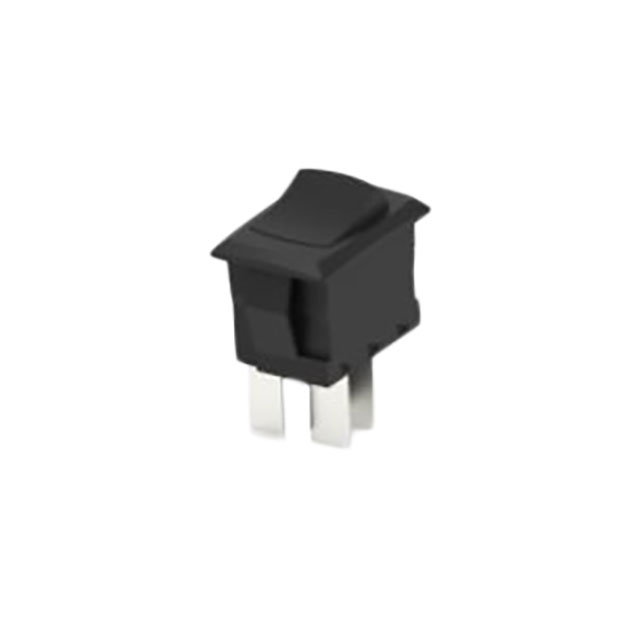

SWITCH ROCKER DPST 12A 125V
| Part | Current Rating (Amps) | Mechanical Life | Switch Function | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Color - Actuator/Cap | Termination Style | Circuit | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Actuator Marking | Actuator Type | Voltage Rating - AC | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 12 A | 100000 Cycles | On-Off | Panel Mount Snap-In | 13 mm | 19.2 mm | Red | Quick Connect - 0.187" (4.7mm) | DPST | UL | 85 °C | -20 C | 6000 Cycles | No Marking | Concave (Curved) | 125 V | |
 TE Connectivity Raychem Cable Protection | 12 A | 100000 Cycles | On-Off | Panel Mount Snap-In | 13 mm | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | DPST | UL | 85 °C | -20 C | 6000 Cycles | No Marking | Concave (Curved) | 125 V | Dust Proof |
TE Connectivity Raychem Cable Protection | 12 A | 100000 Cycles | On-Off | Panel Mount Snap-In | 13 mm | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | DPST | UL | 85 °C | -20 C | 6000 Cycles | O I | Concave (Curved) | 125 V | Dust Proof |
