DAC3152 Series

Dual-channel, 10-bit, 500-MSPS digital-to-analog converter (DAC) with current sink output

Catalog

Dual-channel, 10-bit, 500-MSPS digital-to-analog converter (DAC) with current sink output

Part	Settling Time	Number of Bits [custom]	Sampling Rate (Per Second)	DAC Type	Utilized IC / Part	Supplied Contents	Data Interface	Number of DAC's	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	INL/DNL (LSB)	Architecture	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Output Type	Supplier Device Package	Mounting Type	Reference Type

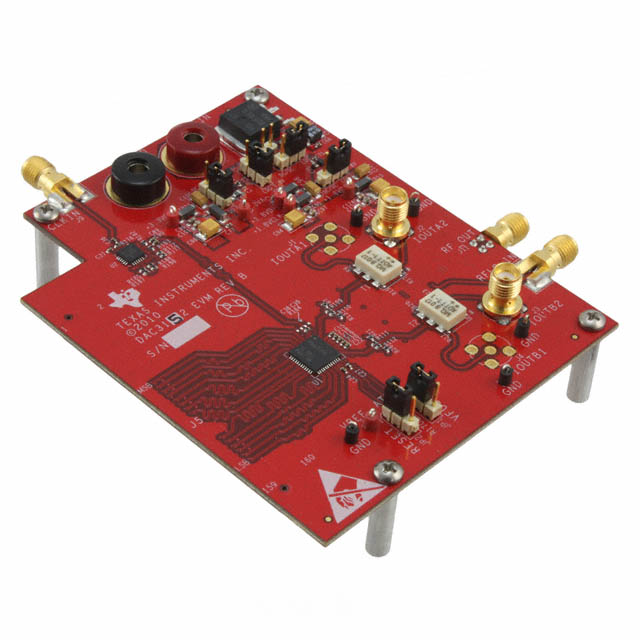

Texas Instruments DAC3152EVM	10 ns	10	500 M	Current	DAC3152	Board(s)	CMOS LVDS Parallel	2
Texas Instruments DAC3152IRGZR	10 ns	10					LVDS - Parallel		48-VFQFN Exposed Pad	85 °C	-40 °C	3.6 V	3 V	0.1 LSB 0.15 LSB	Current Sink	1.7 V	1.9 V	Current - Unbuffered	48-VQFN (7x7)	Surface Mount	Internal
Texas Instruments DAC3152IRGZT	10 ns	10					LVDS - Parallel		48-VFQFN Exposed Pad	85 °C	-40 °C	3.6 V	3 V	0.1 LSB 0.15 LSB	Current Sink	1.7 V	1.9 V	Current - Unbuffered	48-VQFN (7x7)	Surface Mount	Internal

Catalog

Dual-channel, 10-bit, 500-MSPS digital-to-analog converter (DAC) with current sink output

Key Features

• Low Power: 270 mW at 500 MSPSLVDS Input Data BusInterleaved DDR Data LoadHigh DC Accuracy: ±0.25 LSB DNL (10-bit),± 0.5 LSB INL (12-bit)Low Latency: 1.5 Clock CyclesSimple Control: No Software RequiredDifferential Scalable Output: 2 mA to 20 mAOn-Chip 1.2-V Reference1.8-V and 3.3-V DC SuppliesSpace Saving Package: 48-pin 7-mm × 7-mm QFNAPPLICATIONSCellular Base StationsWideband CommunicationsMedical InstrumentationTest and MeasurementLow Power: 270 mW at 500 MSPSLVDS Input Data BusInterleaved DDR Data LoadHigh DC Accuracy: ±0.25 LSB DNL (10-bit),± 0.5 LSB INL (12-bit)Low Latency: 1.5 Clock CyclesSimple Control: No Software RequiredDifferential Scalable Output: 2 mA to 20 mAOn-Chip 1.2-V Reference1.8-V and 3.3-V DC SuppliesSpace Saving Package: 48-pin 7-mm × 7-mm QFNAPPLICATIONSCellular Base StationsWideband CommunicationsMedical InstrumentationTest and Measurement

Description

The DAC3152/DAC3162 is a low-power, low-latency, high-dynamic-range, dual-channel, 10-/12-bit, pin-compatible family of digital-to-analog converters (DACs) with a sample rate as high as 500 MSPS. The device simplicity (no software required), low latency, and low power simplify the design of complex systems. The DACs interface seamlessly with the high-performance TRF370333 analog quadrature modulator for direct upconversion architectures. Digital data for both DAC channels is interleaved through a single LVDS data bus with on-chip termination. The high input rate of the devices allows the processing of wide-bandwidth signals. The devices are characterized for operation over the entire industrial temperature range of –40°C to 85°C and are available in a small 48-pin 7-mm × 7-mm QFN package. The low power, small size, speed, superior crosstalk, simplicity, and low latency of the DAC3152/DAC3162 make them an attractive fit for a variety of applications. The DAC3152/DAC3162 is a low-power, low-latency, high-dynamic-range, dual-channel, 10-/12-bit, pin-compatible family of digital-to-analog converters (DACs) with a sample rate as high as 500 MSPS. The device simplicity (no software required), low latency, and low power simplify the design of complex systems. The DACs interface seamlessly with the high-performance TRF370333 analog quadrature modulator for direct upconversion architectures. Digital data for both DAC channels is interleaved through a single LVDS data bus with on-chip termination. The high input rate of the devices allows the processing of wide-bandwidth signals. The devices are characterized for operation over the entire industrial temperature range of –40°C to 85°C and are available in a small 48-pin 7-mm × 7-mm QFN package. The low power, small size, speed, superior crosstalk, simplicity, and low latency of the DAC3152/DAC3162 make them an attractive fit for a variety of applications.
