MAX17501 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

KIT EVAL FOR MAX17501F

Part	Board Type	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Current - Output	Outputs and Type	Outputs and Type	Utilized IC / Part	Regulator Topology	Supplied Contents	Voltage - Output	Function	Supplier Device Package	Package / Case	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Output Configuration	Number of Outputs	Voltage - Output (Min/Fixed)	Topology	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Type

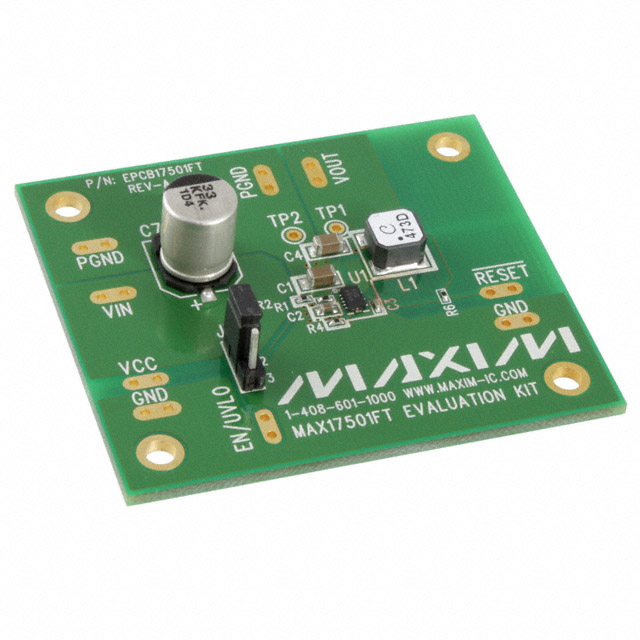

Analog Devices Inc./Maxim Integrated MAX17501FTEVKIT#	Fully Populated	DC/DC Step Down	60 V	6 V	600 kHz	500 mA	Non-Isolated	1	MAX17501F	Buck	Board(s)	5 V
Analog Devices Inc./Maxim Integrated MAX17501GATB+T					600 kHz	500 mA							Step-Down	10-TDFN (3x2)	10-WFDFN Exposed Pad	55.2 V	4.5 V	Positive	1	0.9 V	Buck	60 V	Surface Mount	125 ¯C	-40 °C	Adjustable

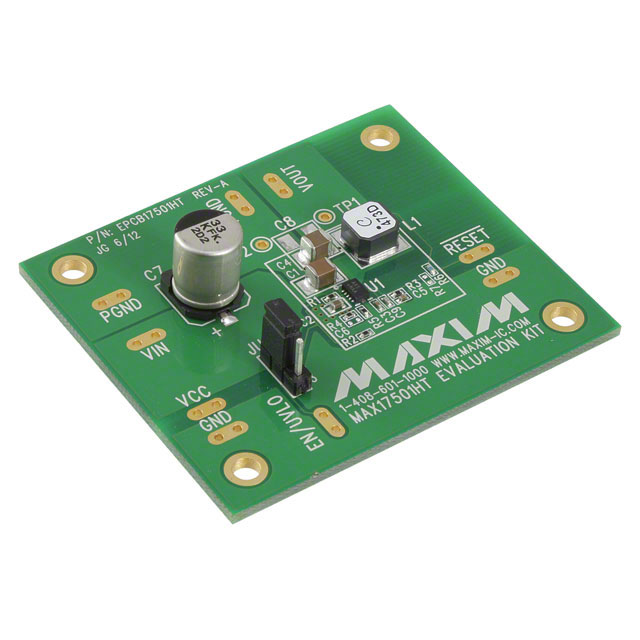

Analog Devices Inc./Maxim Integrated MAX17501HTEVKIT#	Fully Populated	DC/DC Step Down	60 V	4.5 V	300 kHz	500 mA	Non-Isolated	1	MAX17501H	Buck	Board(s)	2.5 V
Analog Devices Inc./Maxim Integrated MAX17501FATB+T					600 kHz	500 mA							Step-Down	10-TDFN (3x2)	10-WFDFN Exposed Pad		4.5 V	Positive	1	5 V	Buck	60 V	Surface Mount	125 ¯C	-40 °C		1.81 mOhm
Analog Devices Inc./Maxim Integrated MAX17501HATB+T					300 kHz	500 mA							Step-Down	10-TDFN (3x2)	10-WFDFN Exposed Pad	55.2 V	4.5 V	Positive	1	0.9 V	Buck	60 V	Surface Mount	125 ¯C	-40 °C	Adjustable
Analog Devices Inc./Maxim Integrated MAX17501GTEVKIT#	Fully Populated	DC/DC Step Down	60 V	14 V	600 kHz	500 mA	Non-Isolated	1	MAX17501G	Buck	Board(s)	12 V

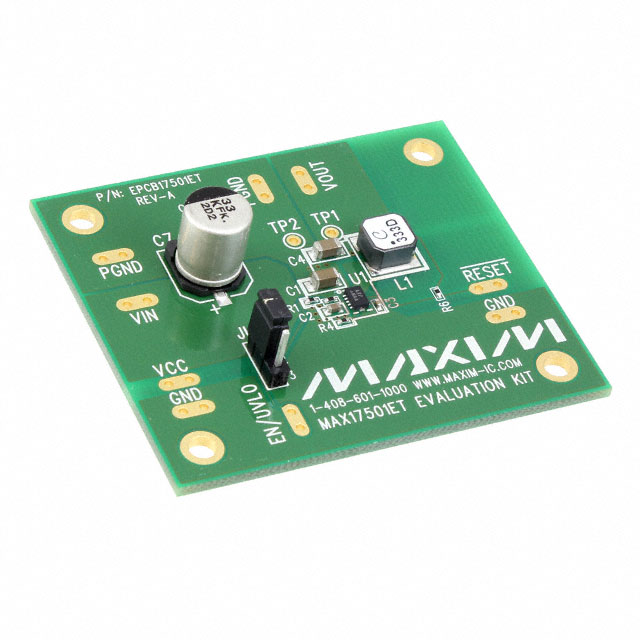

Analog Devices Inc./Maxim Integrated MAX17501ETEVKIT#	Fully Populated	DC/DC Step Down	60 V	4.5 V	600 kHz	500 mA	Non-Isolated	1	MAX17501E	Buck	Board(s)	3.3 V
Analog Devices Inc./Maxim Integrated MAX17501EATB+					600 kHz	500 mA							Step-Down	10-TDFN (3x2)	10-WFDFN Exposed Pad		4.5 V	Positive	1	3.3 V	Buck	60 V	Surface Mount	125 ¯C	-40 °C		1.81 mOhm
Analog Devices Inc./Maxim Integrated MAX17501EATB+T					600 kHz	500 mA							Step-Down	10-TDFN (3x2)	10-WFDFN Exposed Pad		4.5 V	Positive	1	3.3 V	Buck	60 V	Surface Mount	125 ¯C	-40 °C		1.81 mOhm
Analog Devices Inc./Maxim Integrated MAX17501FATB+					600 kHz	500 mA							Step-Down	10-TDFN (3x2)	10-WFDFN Exposed Pad		4.5 V	Positive	1	5 V	Buck	60 V	Surface Mount	125 ¯C	-40 °C		1.81 mOhm
