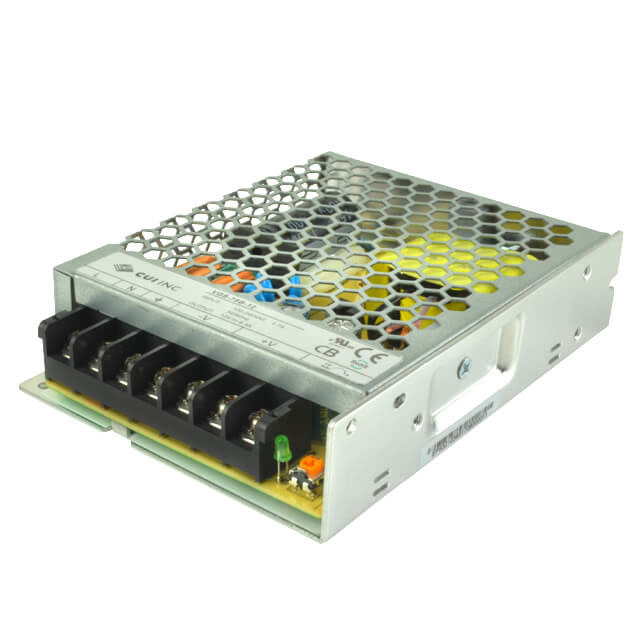

VGS-75B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 77W
| Part | Features | Number of Outputs | Current - Output 1 | Type | Voltage - Output 1 | Voltage - Isolation | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Standard Number | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Adjustable Output Universal Input | 1 | 3.2 A | Enclosed | 24 V | 1.5 kV | 77 W | 70 °C | -20 °C | ITE (Commercial) | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 97.5 mm | 5.08 " | 3.84 " | 1.18 in | 129 mm | 30 mm | 88 % | 264 VAC | 90 VAC | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount |
CUI Inc. | Adjustable Output Universal Input | 1 | 1.6 A | Enclosed | 48 V | 1.5 kV | 77 W | 70 °C | -20 °C | ITE (Commercial) | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 97.5 mm | 5.08 " | 3.84 " | 1.18 in | 129 mm | 30 mm | 88 % | 264 VAC | 90 VAC | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount |
CUI Inc. | Adjustable Output Universal Input | 1 | 2.5 A | Enclosed | 30 V | 1.5 kV | 75 W | 70 °C | -20 °C | ITE (Commercial) | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 97.5 mm | 5.08 " | 3.84 " | 1.18 in | 129 mm | 30 mm | 88 % | 264 VAC | 90 VAC | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount |
CUI Inc. | Adjustable Output Universal Input | 1 | 6.3 A | Enclosed | 12 V | 1.5 kV | 76 W | 70 °C | -20 °C | ITE (Commercial) | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 97.5 mm | 5.08 " | 3.84 " | 1.18 in | 129 mm | 30 mm | 85 % | 264 VAC | 90 VAC | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount |
