LM20242 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC REG BUCK ADJ 2A 20HTSSOP
| Part | Function | Number of Outputs | Frequency - Switching [Max] | Frequency - Switching [Min] | Topology | Voltage - Input (Max) [Max] | Output Configuration | Voltage - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case [custom] | Package / Case | Mounting Type | Synchronous Rectifier | Voltage - Input (Min) [Min] | Output Type | Supplier Device Package | Current - Output | Voltage - Output (Min/Fixed) | Voltage - Output | Board Type | Supplied Contents | Outputs and Type | Outputs and Type | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Utilized IC / Part | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Down | 1 | 1 MHz | 100 kHz | Buck | 36 V | Positive | 32.4 V | -40 °C | 125 ¯C | 20-PowerTSSOP | 4.4 mm | 0.173 in | Surface Mount | 4.5 V | Adjustable | 20-HTSSOP | 2 A | 0.8 V | ||||||||||||

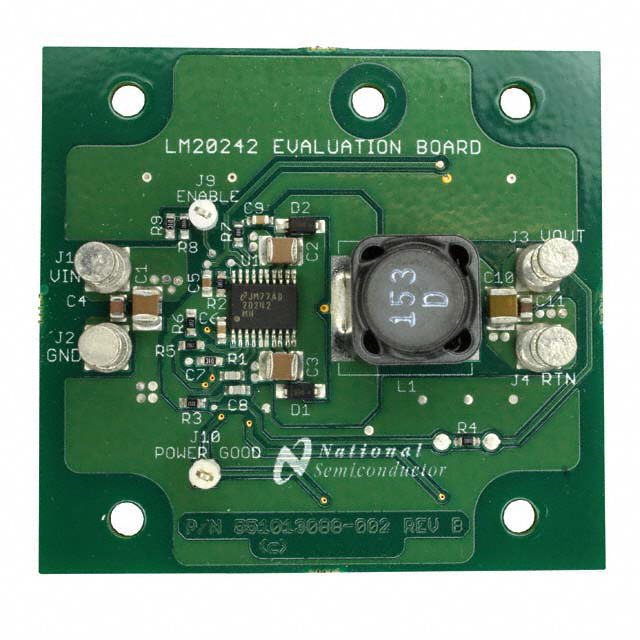

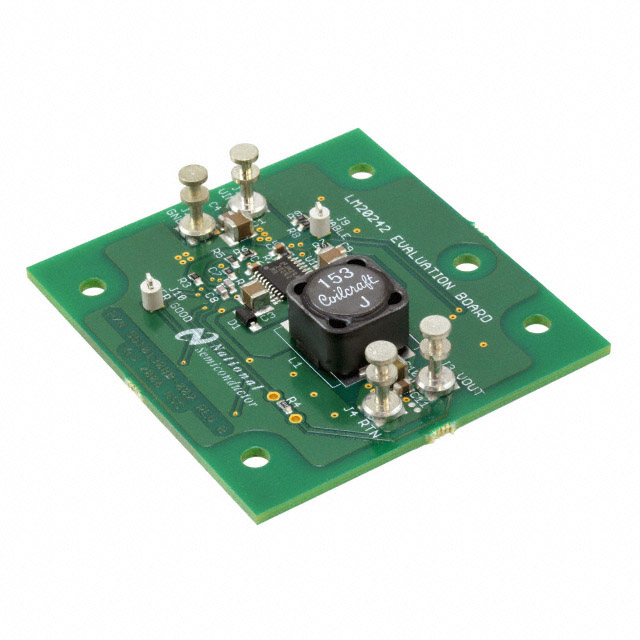

 Texas Instruments | 2 A | 3.3 V | Fully Populated | Board(s) | Non-Isolated | 1 | DC/DC Step Down | 36 V | 8 V | Buck | LM20242 | 300 kHz | |||||||||||||||||||
Texas Instruments | Step-Down | 1 | 1 MHz | 100 kHz | Buck | 36 V | Positive | 32.4 V | -40 °C | 125 ¯C | 20-PowerTSSOP | 4.4 mm | 0.173 in | Surface Mount | 4.5 V | Adjustable | 20-HTSSOP | 2 A | 0.8 V | ||||||||||||
 Texas Instruments | 2 A | 3.3 V | Fully Populated | Board(s) | Non-Isolated | 1 | DC/DC Step Down | 36 V | 8 V | Buck | LM20242 | 300 kHz |
