1825373 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

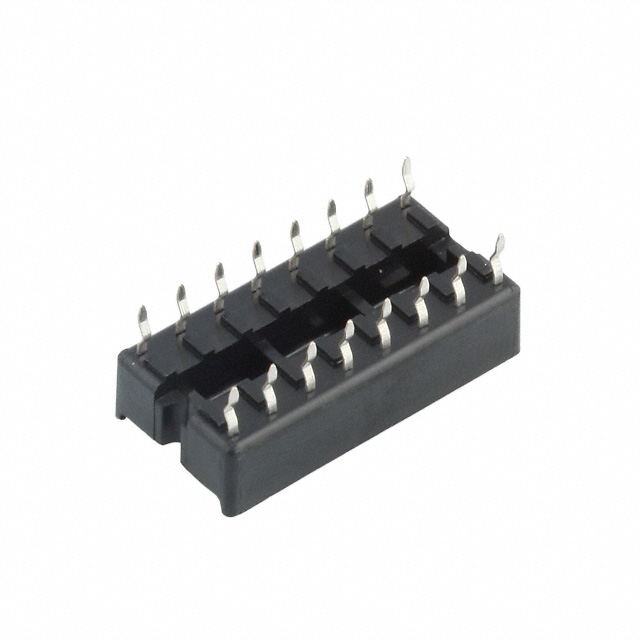

CONN IC DIP SOCKET 16POS GOLD
| Part | Number of Positions or Pins (Grid) | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Housing Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Material - Post | Mounting Type | Contact Finish - Post | Contact Resistance | Pitch - Post | Pitch - Post | Type | Type | Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Termination Post Length [x] | Termination Post Length [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 16 | UL94 V-0 | 0.1 in | 2.54 mm | Thermoplastic Glass Filled | Closed Frame | -55 °C | 125 °C | Gold | Phosphor Bronze | Through Hole | Gold | 30 mOhm | 2.54 mm | 0.1 in | 0.3 " | 7.62 mm | DIP | 15 µin | 0.38 µm | Solder | 0.128 in | 3.24 mm | 15 µin | 0.38 µm | Phosphor Bronze |
