G20 Series

Manufacturer: Serpac

Catalog

BOX ABS WHITE 5.06"L X 4.38"W

Part	Weight	Weight	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Container Type	Features	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Color	Material	Design	Height [z]	Height [z]

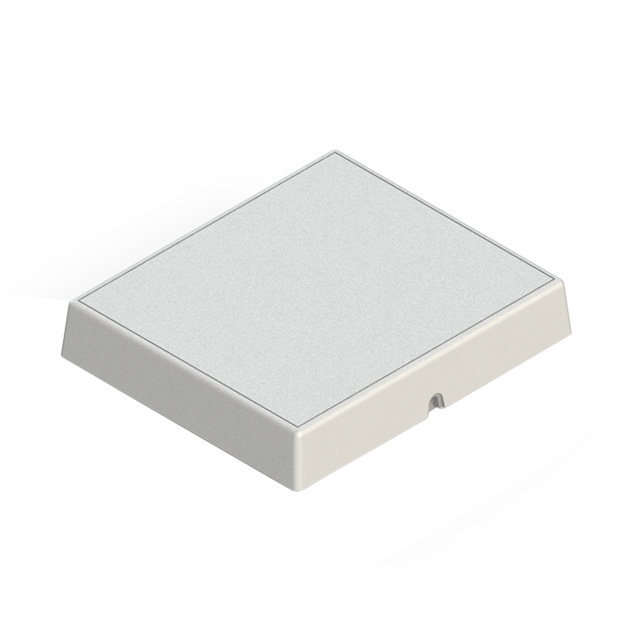

Serpac G20,WH	95.25 g	0.21 lb	2.29 mm	0.09 in	143 cm˛	22.1 in˛	Box Potting	PCB Supports	UL94 HB	128.52 mm	4.38 "	5.06 "	111.25 mm	IP40	White	ABS Plastic	Open End(s)	0.89 in	22.61 mm

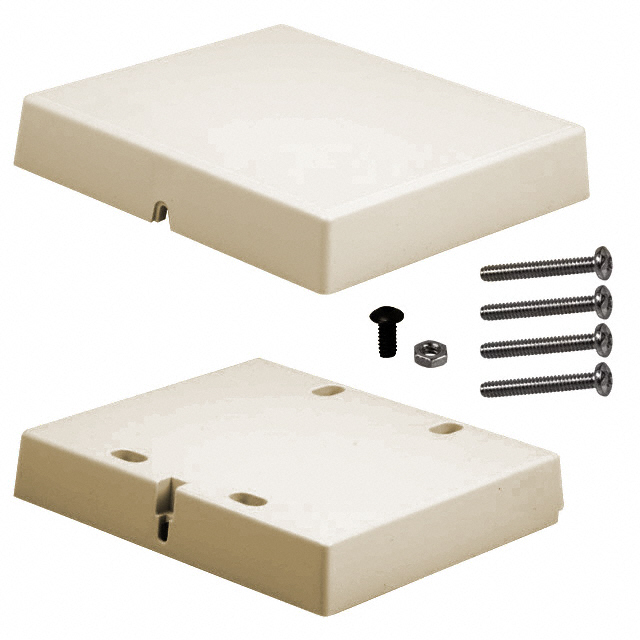

Serpac G20,AL	95.25 g	0.21 lb	2.29 mm	0.09 in	143 cm˛	22.1 in˛	Box Potting	PCB Supports	UL94 HB	128.52 mm	4.38 "	5.06 "	111.25 mm	IP40	Almond	ABS Plastic	Open End(s)	0.89 in	22.61 mm

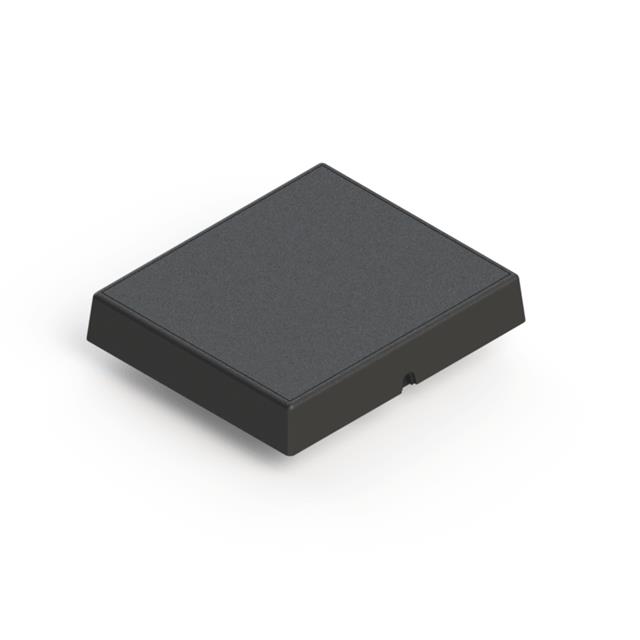

Serpac G20,BK	95.25 g	0.21 lb	2.29 mm	0.09 in	143 cm˛	22.1 in˛	Box Potting	PCB Supports	UL94 HB	128.52 mm	4.38 "	5.06 "	111.25 mm	IP40	Black	ABS Plastic	Open End(s)	0.89 in	22.61 mm
