19412060 Series
Manufacturer: HARTING
Beta
⌘K
CONN HOOD CPLNG BOTTOM SZ6B M32
| Part | Style | Lock Location | Housing Color | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Ingress Protection | Size | Features | Connector Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

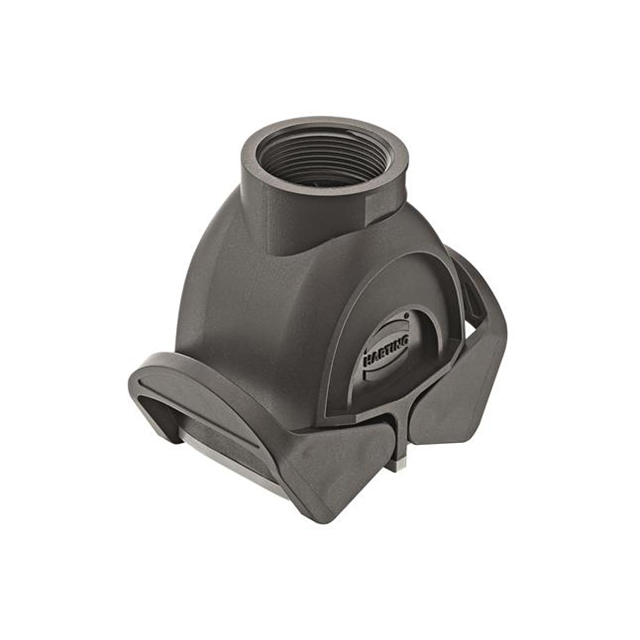

 HARTING | Bottom Entry Top or Bottom Entry | Locking Clip (2) on Hood Top | Black | Glass Filled Nylon Polyamide (PA) | 125 °C | -40 C | M32 | IP65 - Dust Tight Water Resistant | 6B | Cable to Cable | Hood - Coupling | ||||||

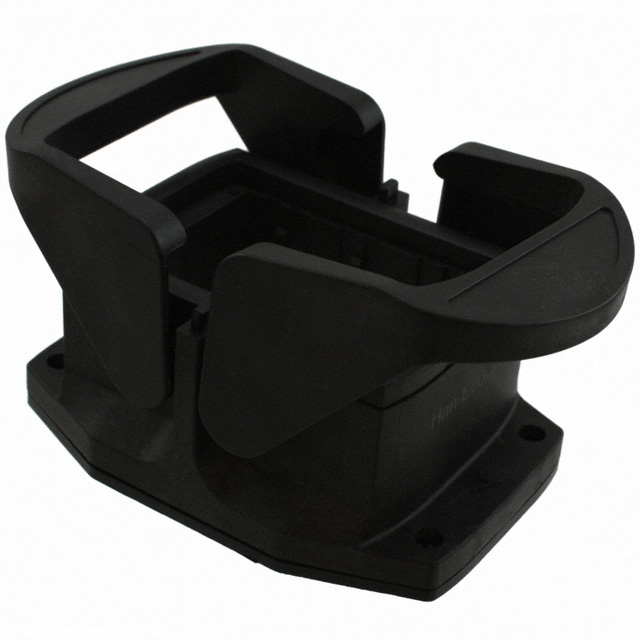

 HARTING | Bottom Entry | Locking Clip (2) on Base Bottom | Black | Glass Filled Nylon Polyamide (PA) | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | 6B | Base - Panel Mount | ||||||||

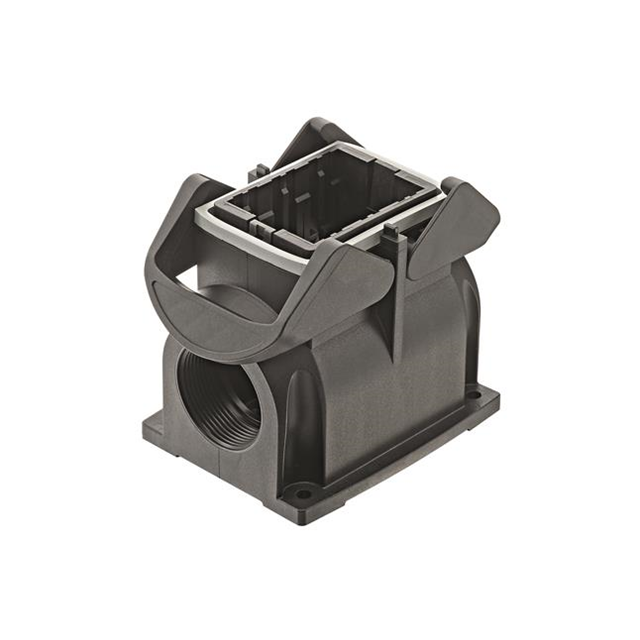

 HARTING | Side Entry | Locking Clip (2) on Base Bottom | Black | Glass Filled Nylon Polyamide (PA) | 125 °C | -40 C | M32 | IP65 - Dust Tight Water Resistant | 6B | Base - Box Mount | 3.307 " | 68 mm | 2.843 in | 72.2 mm | 84 mm | 2.677 " |
