1241.6632 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPDT 5A 250V
| Part | Mechanical Life | Electrical Life | Mounting Type | Ingress Protection | Actuator Type | Current Rating (Amps) | Switch Function | Color - Actuator/Cap | Actuator Marking | Voltage Rating - AC | Type | Circuit | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

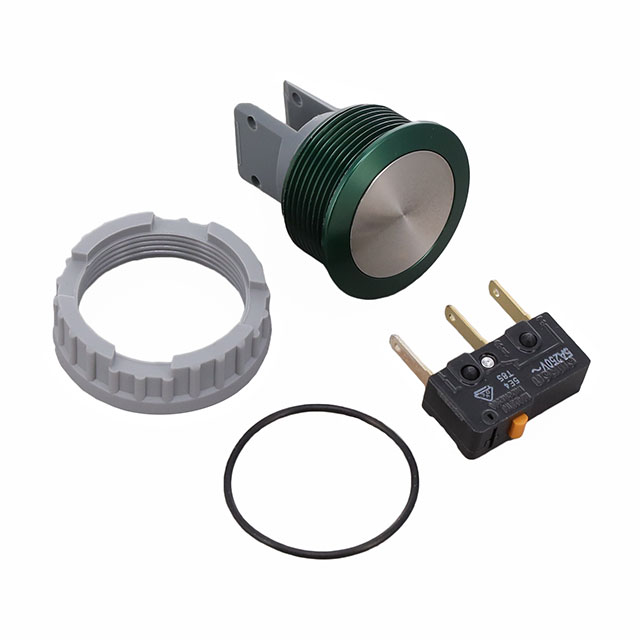

 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | Panel Mount Front | IP40 | Button Flush Round | 5 A | On-Mom | Green | No Marking | 250 V | Anti-Vandal | SPDT | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | 22.1 mm |

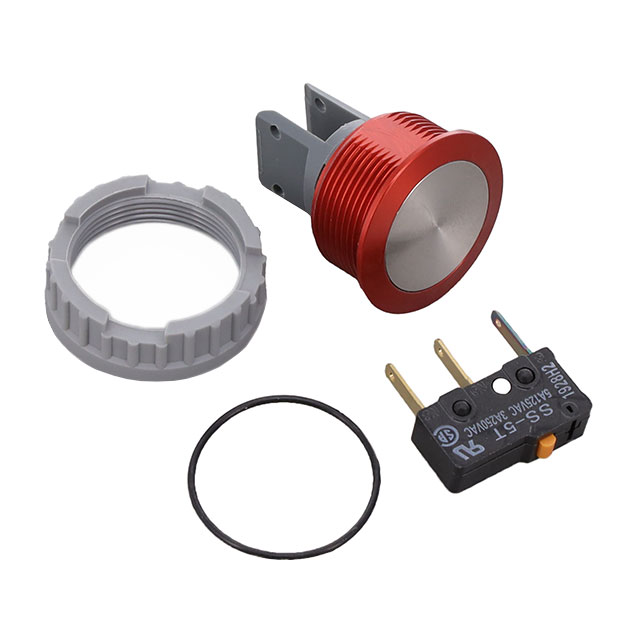

 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | Panel Mount Front | IP40 | Button Flush Round | 5 A | On-Mom | Red | No Marking | 125 V | Anti-Vandal | SPDT | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | 22.1 mm |
 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | Panel Mount Front | IP40 | Button Flush Round | 5 A | On-Mom | Green | No Marking | 125 V | Anti-Vandal | SPDT | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | 22.1 mm |

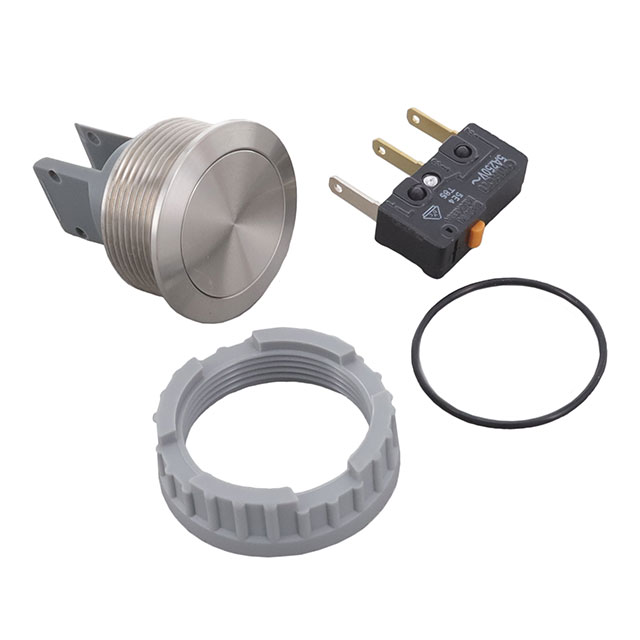

 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | Panel Mount Front | IP40 | Button Flush Round | 5 A | On-Mom | Silver | No Marking | 125 V | Anti-Vandal | SPDT | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | 22.1 mm |
 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | Panel Mount Front | IP40 | Button Flush Round | 5 A | On-Mom | Green | No Marking | 250 V | Anti-Vandal | SPDT | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | 22.1 mm |
