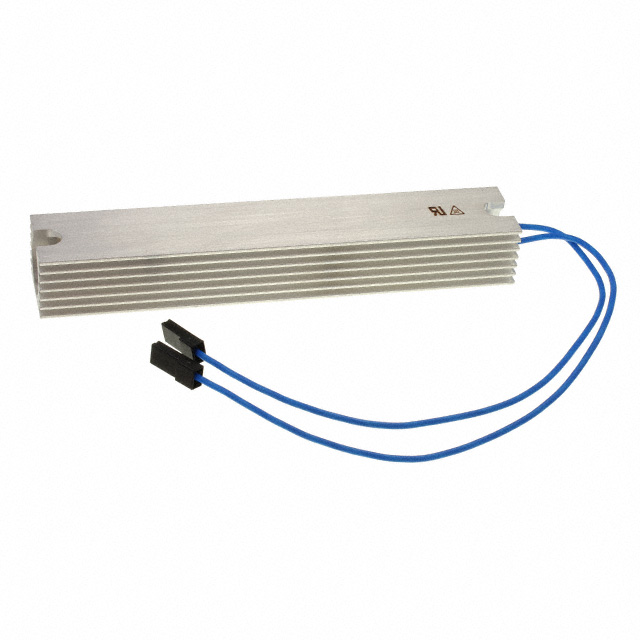

ARG320 Series

Manufacturer: Ohmite

Catalog

RES CHAS MNT 24 OHM 5% 400W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Composition	Temperature Coefficient	Power (Watts)	Mounting Feature	Tolerance	Operating Temperature [Max]	Lead Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Coating, Housing Type	Resistance	Package / Case
Ohmite ARG320C 24R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Screw Holes	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	24 Ohms	Rectangular Wire Leads
Ohmite ARG320C 12R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Flanges	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	12 Ohms	Rectangular Wire Leads
Ohmite ARG320C 10R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Screw Holes	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	10 Ohms	Rectangular Wire Leads
Ohmite ARG320C 18R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Screw Holes	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	18 Ohms	Rectangular Wire Leads
Ohmite ARG320C 10R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Flanges	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	10 Ohms	Rectangular Wire Leads
Ohmite ARG320C 18R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Flanges	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	18 Ohms	Rectangular Wire Leads
Ohmite ARG320C 12R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Screw Holes	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	12 Ohms	Rectangular Wire Leads
Ohmite ARG320C 24R J	36.5 mm	7.874 in	1.437 in	200 mm	Wirewound	150 ppm/°C	400 W	Flanges	5 %	250 °C	Wire Leads	1.102 in	28 mm	Aluminum	24 Ohms	Rectangular Wire Leads
