IRM-02 Series

Catalog

AC/DC CONVERTER 15V 2W

Part	Line Regulation	Load Regulation	Approval Agency	Package / Case	Applications	Voltage - Output 1	Number of Outputs	Efficiency	Features	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
MEAN WELL USA Inc. IRM-02-15	0.5 %	0.5 %	CB CE cURus TUV	4-DIP Module	ITE (Commercial)	15 V	1	75 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	133 mA	2 W	Through Hole	Enclosed	85 °C	-30 °C

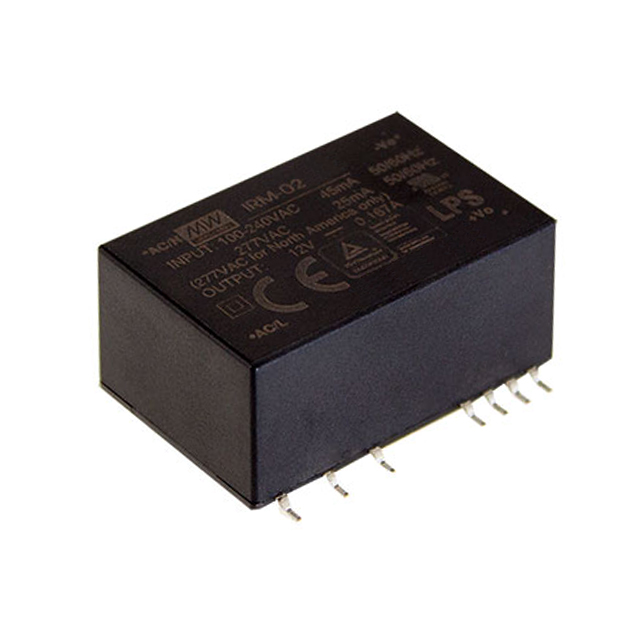

MEAN WELL USA Inc. IRM-02-5S	0.5 %	0.5 %	CB CE cURus TUV	24-SMD Module 14 Leads	ITE (Commercial)	5 V	1	70 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	400 mA	2 W	Surface Mount	Enclosed	85 °C	-30 °C	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-02-12	0.5 %	0.5 %	CB CE cURus TUV	4-DIP Module	ITE (Commercial)	12 V	1	74 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	167 mA	2 W	Through Hole	Enclosed	85 °C	-30 °C
MEAN WELL USA Inc. IRM-02-24	0.5 %	0.5 %	CB CE cURus TUV	4-DIP Module	ITE (Commercial)	24 V	1	77 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	83 mA	2 W	Through Hole	Enclosed	85 °C	-30 °C
MEAN WELL USA Inc. IRM-02-9	0.5 %	0.5 %	CB CE cURus TUV	4-DIP Module	ITE (Commercial)	9 V	1	72 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	222 mA	2 W	Through Hole	Enclosed	85 °C	-30 °C
MEAN WELL USA Inc. IRM-02-9S	0.5 %	0.5 %	CB CE cURus TUV	24-SMD Module 14 Leads	ITE (Commercial)	9 V	1	72 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	222 mA	2 W	Surface Mount	Enclosed	85 °C	-30 °C	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-02-3.3	0.5 %	0.5 %	CB CE cURus TUV	4-DIP Module	ITE (Commercial)	3.3 V	1	66 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	600 mA	2 W	Through Hole	Enclosed	85 °C	-30 °C
MEAN WELL USA Inc. IRM-02-15S	0.5 %	0.5 %	CB CE cURus TUV	24-SMD Module 14 Leads	ITE (Commercial)	15 V	1	75 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	133 mA	2 W	Surface Mount	Enclosed	85 °C	-30 °C	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-02-24S	0.5 %	0.5 %	CB CE cURus TUV	24-SMD Module 14 Leads	ITE (Commercial)	24 V	1	77 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	83 mA	2 W	Surface Mount	Enclosed	85 °C	-30 °C	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-02-5	0.5 %	0.5 %	CB CE cURus TUV	4-DIP Module	ITE (Commercial)	5 V	1	70 %	Universal Input	305 VAC 430 VDC	85 VAC 120 VDC	400 mA	2 W	Through Hole	Enclosed	85 °C	-30 °C
