1757836 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN D-SUB RCPT 15POS R/A SLDR
| Part | Number of Positions | Current Rating (Amps) | Shell Size, Connector Layout | Connector Style | Number of Rows | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature | Connector Type | Color | Contact Material | Termination | Contact Finish | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 15 | 5 A | 2 | D-Sub | 2 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 8.08 mm | 0.318 " | -55 °C | 125 °C | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Brass | Solder | Gold | Steel Yellow Chromate Plated Zinc | |||

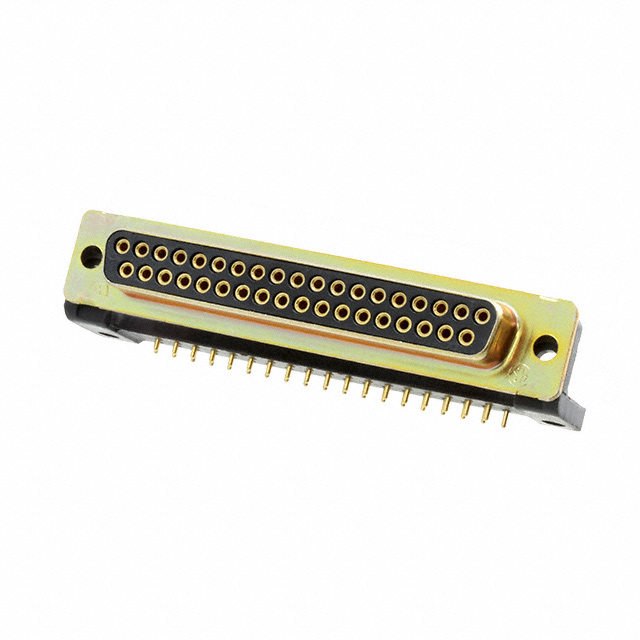

 TE Connectivity Aerospace, Defense and Marine | 37 | 5 A | D-Sub | 2 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 8.08 mm | 0.318 " | -55 °C | 125 °C | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Brass | Solder | Gold | Steel Yellow Chromate Plated Zinc | 4 (DC C) | |||

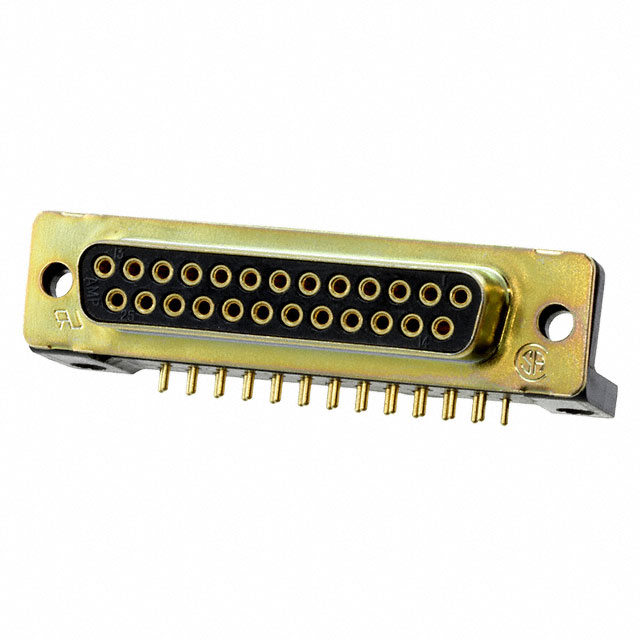

 TE Connectivity Aerospace, Defense and Marine | 5 A | D-Sub | 2 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 8.08 mm | 0.318 " | -55 °C | 125 °C | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Brass | Solder | Gold | Steel Yellow Chromate Plated Zinc | B DB | 3 | |||
 TE Connectivity Aerospace, Defense and Marine | 50 | 5 A | 5 | D-Sub | 3 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 8.08 mm | 0.318 " | -55 °C | 125 °C | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Brass | Solder | Gold | Steel Yellow Chromate Plated Zinc |
