EPS150080 Series

Manufacturer: CUI Inc.

Catalog

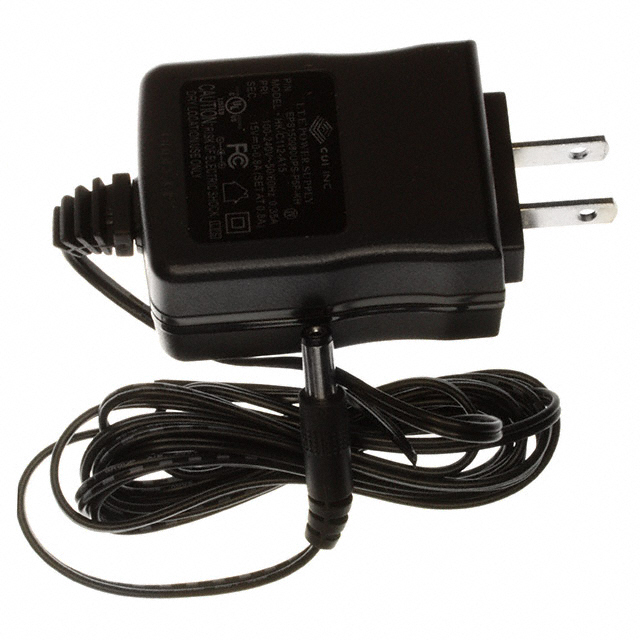

AC/DC WALL MOUNT ADAPTER 15V 12W

Part	Region Utilized	Efficiency	Approval Agency	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	No Load Power Consumption	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Form	Cord Length	Cord Length	Input Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Applications	Current - Output (Max) [Max]	Power (Watts)
CUI Inc. EPS150080UPS-P5P-KH	North America	Level IV	cULus	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	Positive Center	500 mW	15 V	40 °C	0 °C	Wall Mount	1.83 m	72 in	NEMA 1-15P	2.43 "	61.8 mm	45.5 mm	30 mm	1.18 "	1.77 in	Fixed Blade	ITE (Commercial)	0.8 A	12 W
