9043-7533 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

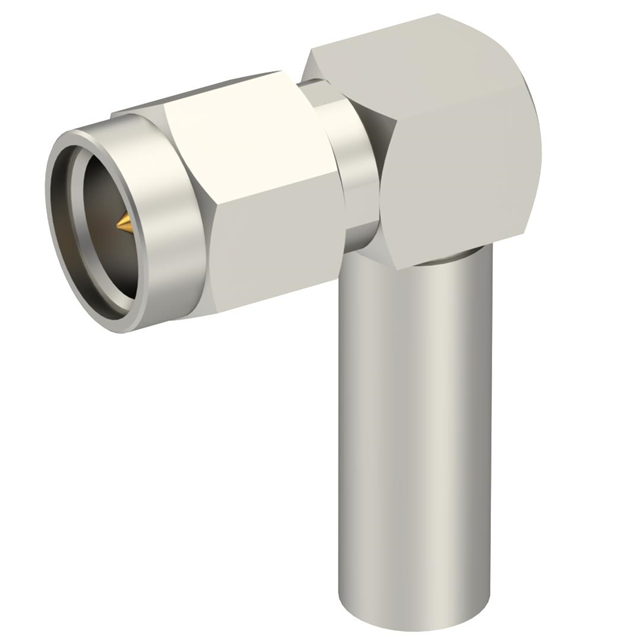

SMA / RIGHT ANGLE PLUG MALE SOLD
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Body Material | Mating Cycles | Housing Color | Contact Termination | Frequency - Max [Max] | Number of Ports | Cable Group | Connector Style | Connector Type | Mounting Type | Impedance | Fastening Type | Center Contact Material | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Nickel | Stainless Steel | 500 | Silver | Crimp Solder | 12.4 GHz | 1 | 188 316 RG-174 | SMA | Plug Male Pin | Free Hanging (In-Line) Right Angle | 50 Ohms | Threaded | Beryllium Copper | Solder | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Nickel | Stainless Steel | 500 | Silver | Solder | 18 GHz | 1 | RG-58 | SMA | Plug Male Pin | Free Hanging (In-Line) Right Angle | 50 Ohms | Threaded | Beryllium Copper | Crimp | 141 |
