NPTC361 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

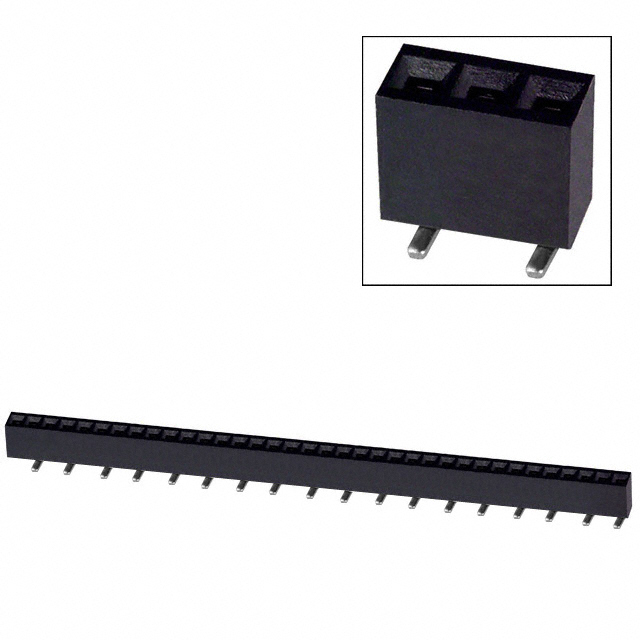

CONN HDR 36POS 0.1 TIN SMD
| Part | Contact Material | Contact Shape | Insulation Material | Number of Rows | Termination | Material Flammability Rating | Voltage Rating | Contact Type | Number of Positions | Current Rating (Amps) | Number of Positions Loaded | Insulation Height | Insulation Height | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Color | Mounting Type | Contact Finish - Post | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | 1 | Solder | UL94 V-0 | 250 V | Female Socket | 36 | 3 A | All | 0.28 in | 7.1 mm | Header Top or Bottom Entry | -40 C | 105 ░C | 0.1 " | 2.54 mm | Black | Surface Mount | Tin | Push-Pull |
