CFM06S Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

SWITCHING POWER SUPPLIES AC-DC OPEN FRAME, 6 WATT, SINGLE OUTPUT, 24VDC OUTPUT, 0.25A, 81% EFFICIENCY, ENCAPSULATED

Part	Package / Case	Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Standard Number	Power (Watts)	Applications	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Load Regulation	Line Regulation	Voltage - Isolation	Current - Output 1	Load Regulation
Cincon Electronics Co. LTD CFM06S240-E	4-DIP Module	Enclosed	90 VAC 120 VDC	264 VAC 370 VDC	1	250 mA	83 %	24 V	Through Hole	1.62 "	41.1 mm	21 mm	0.83 "	0.79 in	20 mm	60335-1 62368-1	6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input
Cincon Electronics Co. LTD CFM06S090	4-DIP Module	Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1	670 mA	81 %	9 V	Through Hole	1.56 in	39.5 mm	19.4 mm	0.76 in	0.72 "	18.3 mm	60335-1 62368-1	6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input	±5%	1 %

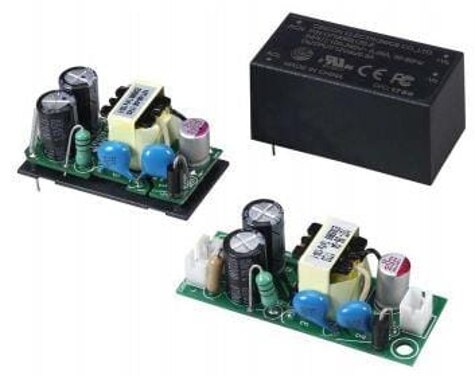

Cincon Electronics Co. LTD CFM06S240-T		Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1		83 %	24 V	Chassis Mount	1.95 in	49.5 mm	18.5 mm	0.73 in	0.59 in	15 mm		6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input			3000 V	250 mA
Cincon Electronics Co. LTD CFM06S150	4-DIP Module	Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1	400 mA	81 %	15 V	Through Hole	1.56 in	39.5 mm	19.4 mm	0.76 in	0.72 "	18.3 mm	60335-1 62368-1	6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input		1 %			3 %

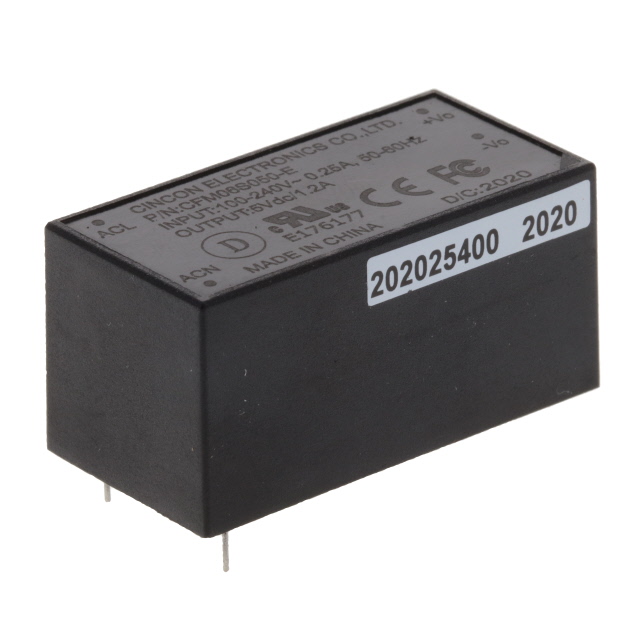

Cincon Electronics Co. LTD CFM06S050-E	4-DIP Module	Enclosed	90 VAC 120 VDC	264 VAC 370 VDC	1	1.2 A	78 %	5 V	Through Hole	1.62 "	41.1 mm	21 mm	0.83 "	0.79 in	20 mm	60335-1 62368-1	6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input	±5%	1 %
Cincon Electronics Co. LTD CFM06S150-E	4-DIP Module	Enclosed	90 VAC 120 VDC	264 VAC 370 VDC	1	400 mA	81 %	15 V	Through Hole	1.62 "	41.1 mm	21 mm	0.83 "	0.79 in	20 mm	60335-1 62368-1	6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input
Cincon Electronics Co. LTD CFM06S150-T		Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1		81 %	15 V	Chassis Mount	1.95 in	49.5 mm	18.5 mm	0.73 in	0.59 in	15 mm		6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input			3000 V	400 mA

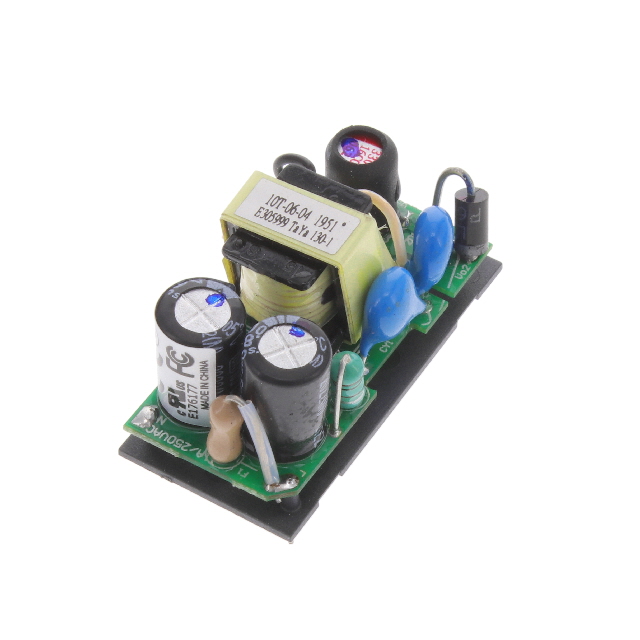

Cincon Electronics Co. LTD CFM06S120	4-DIP Module	Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1	500 mA	81 %	12 V	Through Hole	1.56 in	39.5 mm	19.4 mm	0.76 in	0.72 "	18.3 mm	60335-1 62368-1	6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input
Cincon Electronics Co. LTD CFM06S050-T		Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1		78 %	5 V	Chassis Mount	1.95 in	49.5 mm	18.5 mm	0.73 in	0.59 in	15 mm		6 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input			3000 V	1.2 A
Cincon Electronics Co. LTD CFM06S033	4-DIP Module	Open Frame	90 VAC 120 VDC	264 VAC 370 VDC	1	1.5 A	75 %	3.3 V	Through Hole	1.56 in	39.5 mm	19.4 mm	0.76 in	0.72 "	18.3 mm	60335-1 62368-1	5 W	Household Appliances ITE (Commercial)	CE cURus D-Mark FCC	80 ¯C	-40 °C	Universal Input
