2334530 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

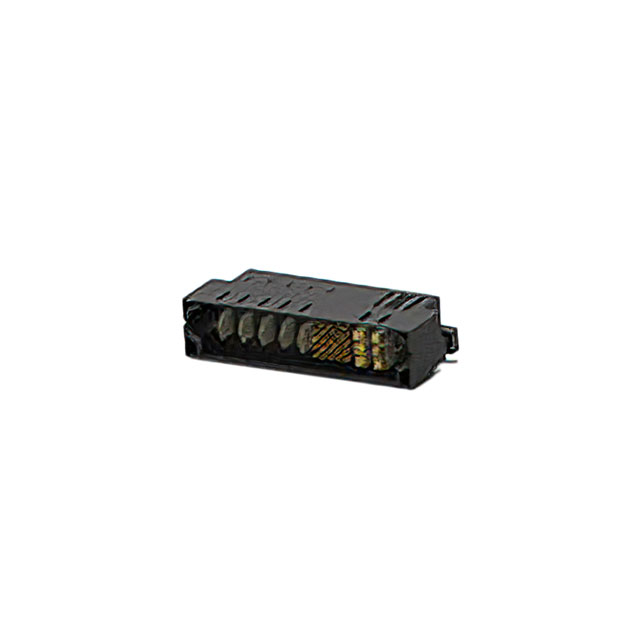

MBPLUS,R/A,PLUG,SOLDER,5LP + 25S
| Part | Material Flammability Rating | Number of Rows | Connector Type | Connector Style | Color | Voltage Rating | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Termination | Pitch [x] | Pitch [x] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | 5 | Header Male Pins and Blades | Multi-Beam | Black | 60 VAC | Through Hole Right Angle | Mating Guide | 125 °C | -40 °C | All | Solder | 0.079 in | 2 mm | 25 | 7 | Gold | 100 A |
