TUHW-88W Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

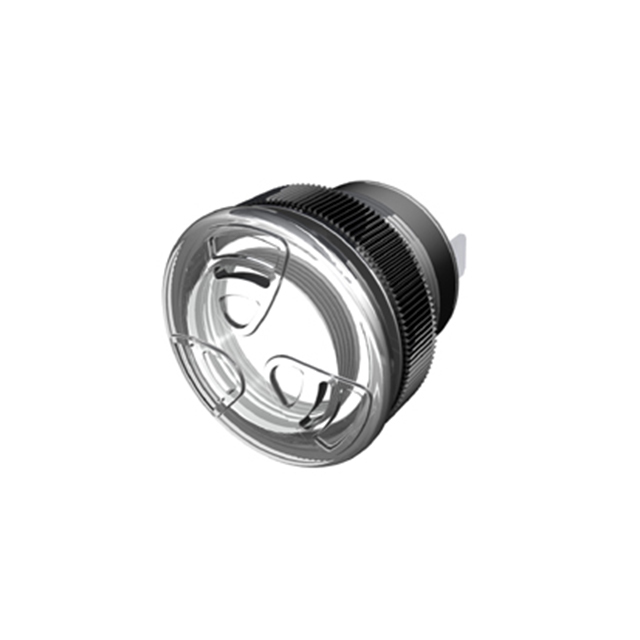

BUZZER 33MM PNL MNT
| Part | Approval Agency | Frequency | Port Location | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Input Type | Driver Circuitry | Sound Pressure Level (SPL) | Termination | Termination | Termination | Voltage Range [Max] | Voltage Range [Min] | Operating Mode | Current - Supply [Max] | Current - Supply [Min] | Ingress Protection | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | UL UR | 3 kHz | Top | 29.97 mm | 1.18 in | Panel Mount | DC | Indicator Internally Driven | 103 dB | Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | Warble Fast | 125 mA | 65 mA | IP68 - Dust Tight Waterproof | 1.299 in | 33 mm |
 Floyd Bell Inc | UL UR | 3 kHz | Top | 29.97 mm | 1.18 in | Panel Mount | DC | Indicator Internally Driven | 103 dB | Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | Slow Warble | 125 mA | 65 mA | IP68 - Dust Tight Waterproof | 1.3 in | 33.02 mm |
