ATS-01G Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

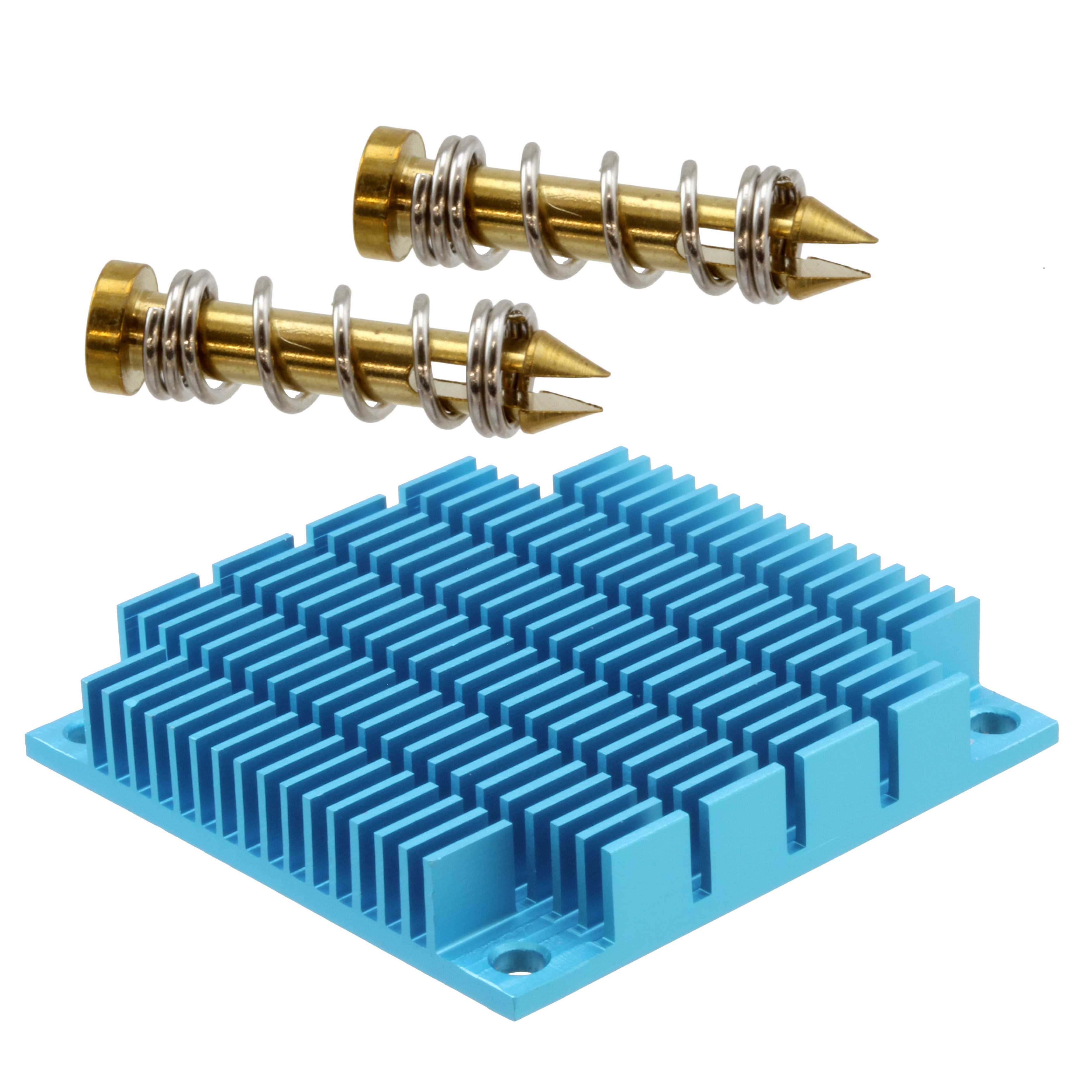

HEATSINK 25X25X30MM R-TAB

...

Part	Package Cooled	Material	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Attachment Method	Shape	Material Finish	Type	Length	Length [x]	Fin Height [custom]	Fin Height [custom]	Width [y]	Width [y]	Length [x]	Fin Height	Fin Height	Length	Shape [custom]	Shape [custom]	Length	Width	Width
Advanced Thermal Solutions Inc. ATS-01G-77-C1-R0	ASIC BGA CPU LGA	Aluminum	9.24 °C/W	1.181 in	30 mm	25 mm	0.984 "	Push Pin	Fins Square	Blue Anodized	Top Mount	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-01G-85-C1-R0	ASIC BGA CPU LGA	Aluminum	23.94 °C/W					Push Pin	Fins Square	Blue Anodized	Top Mount	35 mm	1.378 "	0.394 "	10 mm	1.378 "	35 mm
Advanced Thermal Solutions Inc. ATS-01G-112-C2-R1	ASIC BGA CPU LGA	Aluminum	26.3 °C/W					Push Pin	Fins Square	Blue Anodized	Top Mount		2.362 in			2.362 in	60 mm	60 mm	0.5 "	12.7 mm
Advanced Thermal Solutions Inc. ATS-01G-110-C2-R1	ASIC BGA CPU LGA	Aluminum	26.99 °C/W			54 mm	2.126 in	Push Pin	Fins Square	Blue Anodized	Top Mount	54 mm							0.5 "	12.7 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-01G-42-C1-R0	ASIC BGA CPU LGA	Aluminum	7.3 °C/W	0.9 in	22.86 mm			Push Pin		Blue Anodized	Top Mount	2.28 in				2.4 "	60.96 mm					Rectangular	Fins	57.9 mm
Advanced Thermal Solutions Inc. ATS-01G-147-C3-R0	ASIC BGA CPU LGA	Aluminum	13.65 °C/W					Push Pin	Fins Square	Blue Anodized	Top Mount	35 mm	1.378 "	0.394 "	10 mm	1.378 "	35 mm
Advanced Thermal Solutions Inc. ATS-01G-79-C2-R0	ASIC BGA CPU LGA	Aluminum	26.36 °C/W			30 mm	1.181 in	Push Pin	Fins Square	Blue Anodized	Top Mount	0.03 m		0.394 "	10 mm						1.181 in
Advanced Thermal Solutions Inc. ATS-01G-47-C2-R0	ASIC BGA CPU LGA	Aluminum	9.3 °C/W	1.181 in	30 mm	25 mm	0.984 "	Push Pin	Fins Square	Blue Anodized	Top Mount	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-01G-189-C1-R0	ASIC BGA CPU LGA	Aluminum	4.72 °C/W	0.79 in	20 mm			Push Pin	Fins Square	Blue Anodized	Top Mount		1.772 in					45 mm							1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-01G-16-C1-R0	ASIC BGA CPU LGA	Aluminum	18.06 °C/W			54 mm	2.126 in	Push Pin	Fins Square	Blue Anodized	Top Mount	54 mm		0.394 "	10 mm						2.126 in
