RS512 Series

Catalog

CMC 55UH 1A 2LN TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Number of Lines	Package / Case	Current Rating (Max)	Filter Type	Height (Max) [Max] [z]	Height (Max) [z]	Voltage Rating - AC	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency - Operating	Applications	Current	Configuration	Voltage - Rated AC	Inductance
TE Connectivity AMP Connectors RS512-1-02	125 °C	-40 C	UR VDE	130 mOhm	1 kHz 55 µH	2	4 PC Pin Horizontal	1 A	Signal Line	0.492 in	12.5 mm	250 V	Through Hole	17.7 mm	0.697 in	17.1 mm	0.673 in

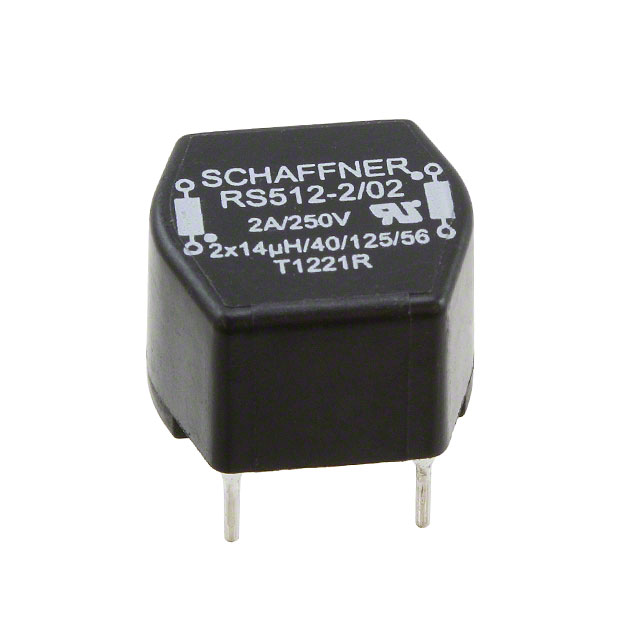

TE Connectivity AMP Connectors RS512-2-02	125 °C	-40 C							Single Phase				Through Hole					DC ~ 400Hz	General Purpose	2 A	Single Stage	250 V	56 µH
TE Connectivity AMP Connectors RS512-1-02	125 °C	-40 C	UR VDE	130 mOhm	1 kHz 55 µH	2	4 PC Pin Horizontal	1 A	Signal Line	0.492 in	12.5 mm	250 V	Through Hole	17.7 mm	0.697 in	17.1 mm	0.673 in
TE Connectivity AMP Connectors RS512-2-02	125 °C	-40 C							Single Phase				Through Hole					DC ~ 400Hz	General Purpose	2 A	Single Stage	250 V	56 µH
