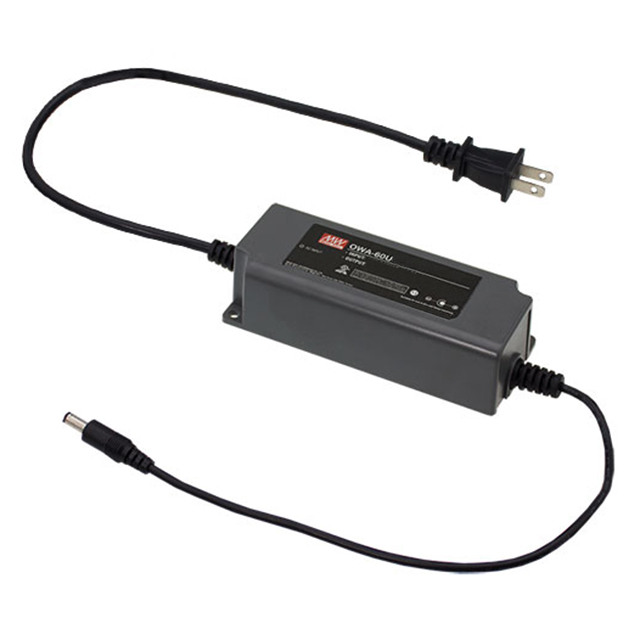

OWA-60U Series

Catalog

AC/DC DESKTOP ADAPTER 54V 60W

Part	No Load Power Consumption	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Voltage - Output	Form	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Efficiency	Current - Output (Max) [Max]	Approval Agency	Applications	Output Connector [x]	Output Connector [diameter]	Output Connector	Power (Watts)	Cord Length	Cord Length
MEAN WELL USA Inc. OWA-60U-54	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	54 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	1.12 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	11.8 "	0.3 m
MEAN WELL USA Inc. OWA-60U-24	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	24 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	2.5 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	11.8 "	0.3 m
MEAN WELL USA Inc. OWA-60U-42	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	42 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	1.5 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	63 W	11.8 "	0.3 m
MEAN WELL USA Inc. OWA-60U-20	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	20 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	3 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	11.8 "	0.3 m
MEAN WELL USA Inc. OWA-60U-48	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	48 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	1.25 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	11.8 "	0.3 m
MEAN WELL USA Inc. OWA-60U-15	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	15 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	4 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	11.8 "	0.3 m
MEAN WELL USA Inc. OWA-60U-30	150 mW	NEMA 1-15P	-35 °C	70 °C	North America	264 VAC	90 VAC	Positive Center	30 V	Desktop (Class II)	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	Level VI	2 A	cULus UL	ITE (Commercial)	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	11.8 "	0.3 m
