430533 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

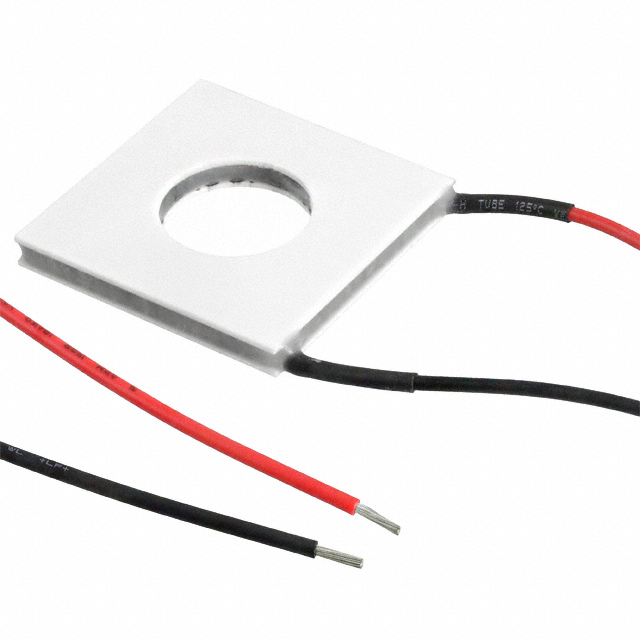

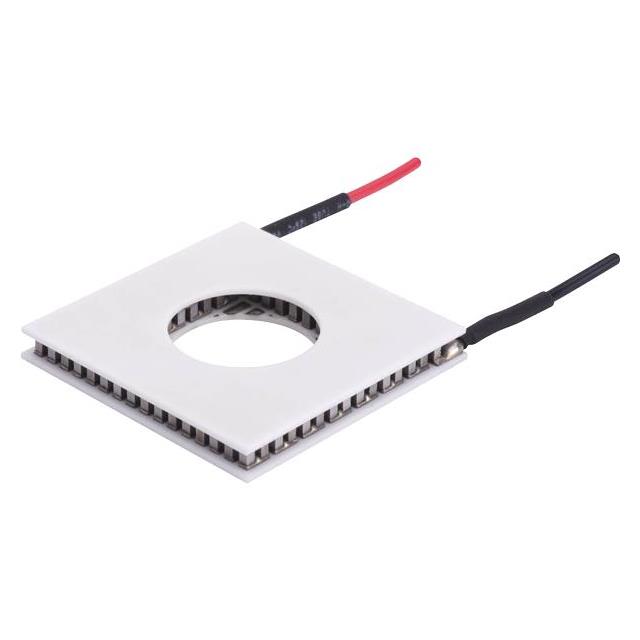

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, CENTER HOLE, 19.1W, 3.1A, 10.38V, 30X30X3.6MM, RTV SEAL
| Part | Delta Tmax @ Th | Qmax @ Th | Resistance | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature | Features | Height [z] | Voltage - Max [Max] | Number of Stages | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 67 °C | 19.7 W | 3.25 Ohms | 30 mm | 30 mm | 80 °C | Lead Wires Sealed - Silicone RTV | 3.58 mm | 10.6 V | 1 | 3 A |
Laird Thermal Systems, Inc. | 1 |
