8800 Series

Catalog

STANDOFFS & SPACERS STACK SPCR #4 .125

Part	Features	Holding Type	Between Board Height	Between Board Height	Between Board Height	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Length - Overall	Length - Overall	Length - Overall	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Support Hole Diameter	Length - Overall

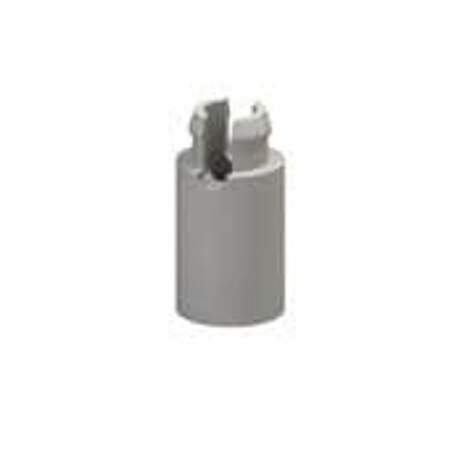

Keystone Electronics 8829	Stackable	Snap Fit	0.125 in	0.125 in	3.18 mm	0.187 in	4.75 mm	3/16	0.1875 in	0.187 in	4.75 mm	Snap Fit	6.35 mm	0.25 in	0.25 in	Nylon	1.57 mm	0.062 in	0.0625 in

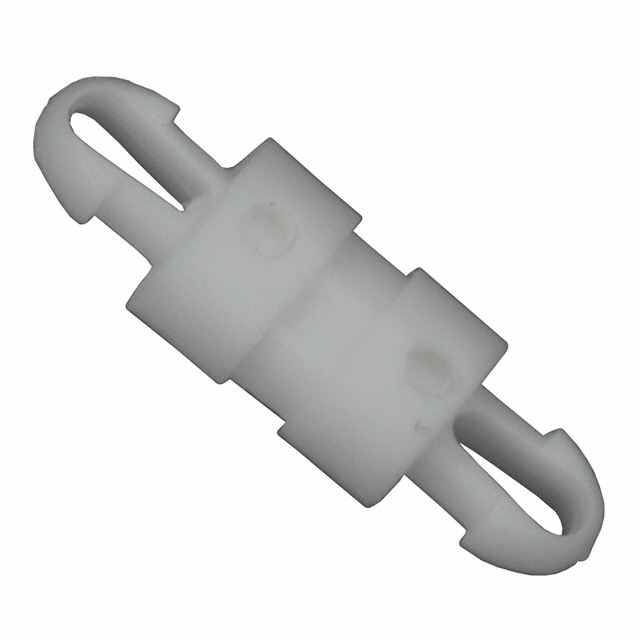

Keystone Electronics 8890		Snap Lock		6.35 mm	0.25 in					0.1 in	2.54 mm	Snap Lock				Nylon	1.57 mm	0.062 in	0.0625 in	13.97 mm	0.55 in	2.54 mm	0.1 in	0.062 "	0.0625 "	1.57 mm
Keystone Electronics 8888		Snap Lock	0.125 in	0.125 in	3.18 mm					0.1 in	2.54 mm	Snap Lock	10.8 mm		0.425 in	Nylon	1.57 mm	0.062 in	0.0625 in			2.54 mm	0.1 in	0.062 "	0.0625 "	1.57 mm
Keystone Electronics 8837	Stackable	Snap Fit	0.5 in	0.5 in	12.7 mm							Snap Lock				Nylon	1.57 mm	0.062 in	0.0625 in			5.94 mm	0.234 in				0.234 in	5.94 mm
Keystone Electronics 8801	Locking Tension Fit Winged	Snap Fit		6.35 mm	0.25 in	0.156 in	3.96 mm		0.1875 in	0.187 in	4.75 mm	Snap Lock				Nylon	1.57 mm	0.062 in	0.0625 in	20.75 mm	0.817 in			0.062 "	0.0625 "	1.57 mm			5 32"
Keystone Electronics 8842	Stackable	Snap Fit	5 8	0.625 in	15.88 mm							Snap Fit	0.75 in 19.05 mm			Nylon	1.57 mm	0.062 in	0.0625 in			5.94 mm	0.234 in				0.234 in	5.94 mm		3/4"
Keystone Electronics 8838	Stackable	Snap Fit	5 8	0.625 in	15.88 mm							Snap Fit	0.75 in 19.05 mm			Nylon	1.57 mm	0.062 in	0.0625 in			5.94 mm	0.234 in				0.234 in	5.94 mm		3/4"

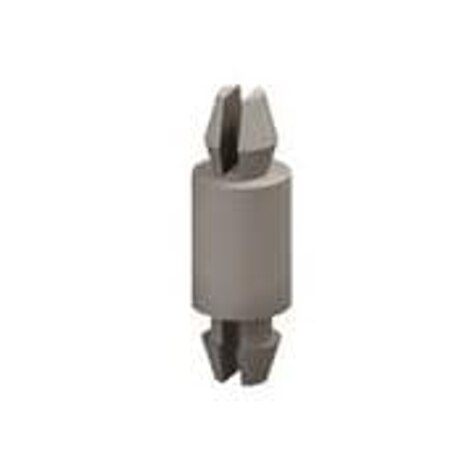

Keystone Electronics 8883	Tension Fit	Snap Fit	0.5 in	0.5 in	12.7 mm	0.125 in	3.18 mm		0.125 in	0.125 in	3.18 mm	Snap Fit				Nylon	1.57 mm	0.062 in	0.0625 in	20.1 mm	0.791 in			0.062 "	0.0625 "	1.57 mm			0.125 in
Keystone Electronics 8879	Tension Fit	Snap Fit	0.125 in	0.125 in	3.18 mm	0.125 in	3.18 mm		0.125 in	0.125 in	3.18 mm	Snap Fit	10.55 mm		0.415 in	Nylon	1.57 mm	0.062 in	0.0625 in					0.062 "	0.0625 "	1.57 mm			0.125 in
