LY4N-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 10A 24V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Coil Voltage | Coil Current | Must Operate Voltage | Switching Voltage | Termination Style | Must Release Voltage | Contact Rating (Current) | Release Time | Relay Type | Features | Contact Form | Coil Resistance | Coil Type | Contact Material | Approval Agency | Load - Max Switching | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

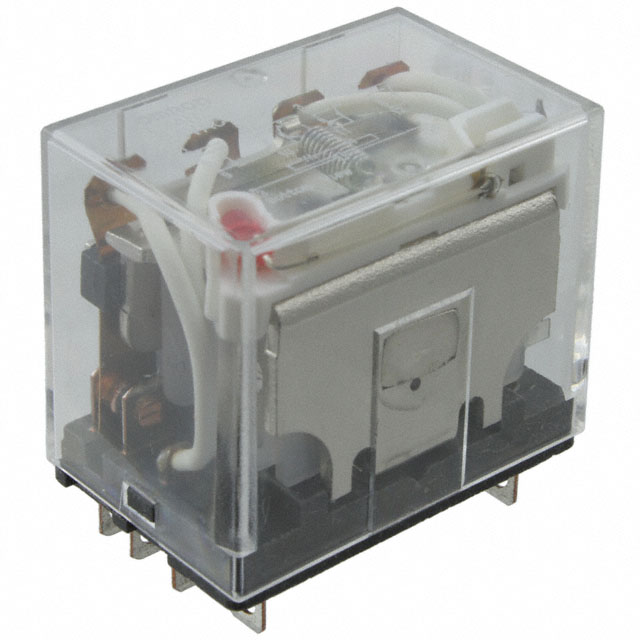

 Omron Electronics Inc-EMC Div | -25 °C | 40 °C | Socketable | 24 VAC | 80 mA | 19.2 VAC | 125 VDC 250 VAC | Plug In | 7.2 VAC | 10 A | 25 ms | General Purpose | Lighted Indicator | 4PDT (4 Form C) | 78 Ohms | Non Latching | Silver Alloy | CE CSA TUV UR | 1250 W 2500 VA | 25 ms |

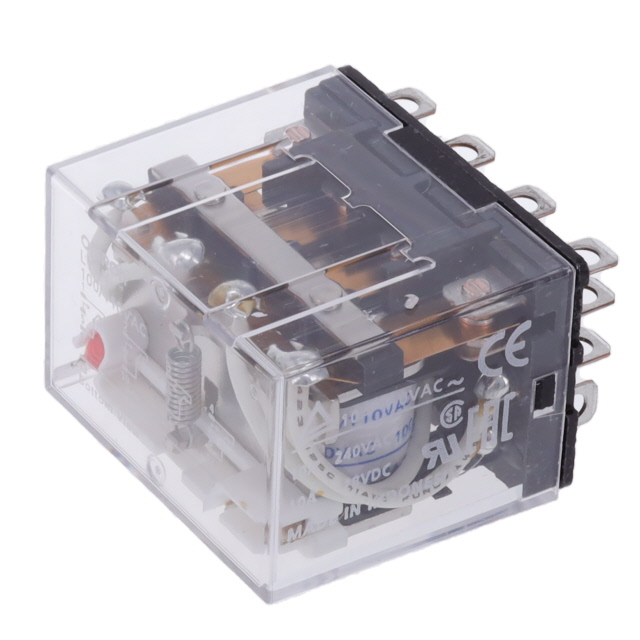

 Omron Electronics Inc-EMC Div | -25 °C | 40 °C | Socketable | 110 VAC/DC | 21.8 mA | 88 VAC/DC | 125 VDC 250 VAC | Plug In | 33 VAC | 10 A | 25 ms | General Purpose | Lighted Indicator | 4PDT (4 Form C) | Non Latching | Silver Alloy | CE CSA TUV UR | 1250 W 2500 VA | 25 ms | |

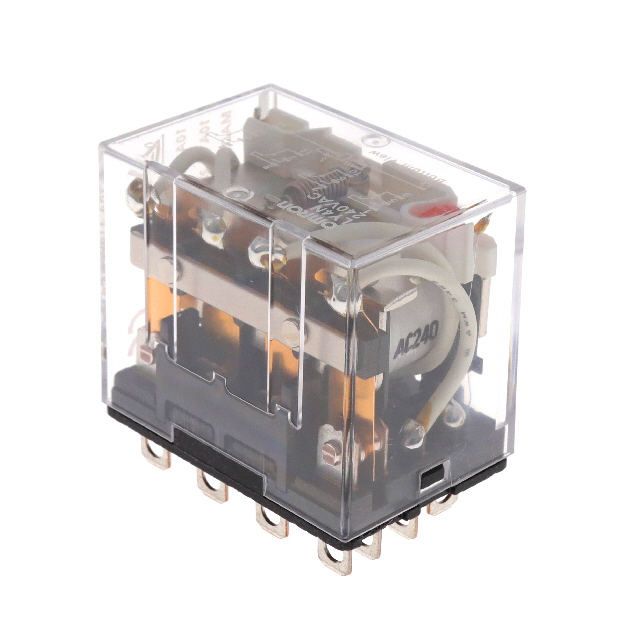

 Omron Electronics Inc-EMC Div | -25 °C | 40 °C | Socketable | 240 VAC | 9.5 mA | 192 VAC | 125 VDC 250 VAC | Plug In | 72 VAC/DC | 10 A | 25 ms | General Purpose | Lighted Indicator | 4PDT (4 Form C) | 9 kOhms | Non Latching | Silver Alloy | CE CSA TUV UR | 1250 W 2500 VA | 25 ms |
 Omron Electronics Inc-EMC Div | -25 °C | 40 °C | Socketable | 120 VAC | 16.4 mA | 96 VAC | 125 VDC 250 VAC | Plug In | 36 VAC | 10 A | 25 ms | General Purpose | Lighted Indicator | 4PDT (4 Form C) | 2.2 kOhms | Non Latching | Silver Alloy | CE CSA TUV UR | 1250 W 2500 VA | 25 ms |
