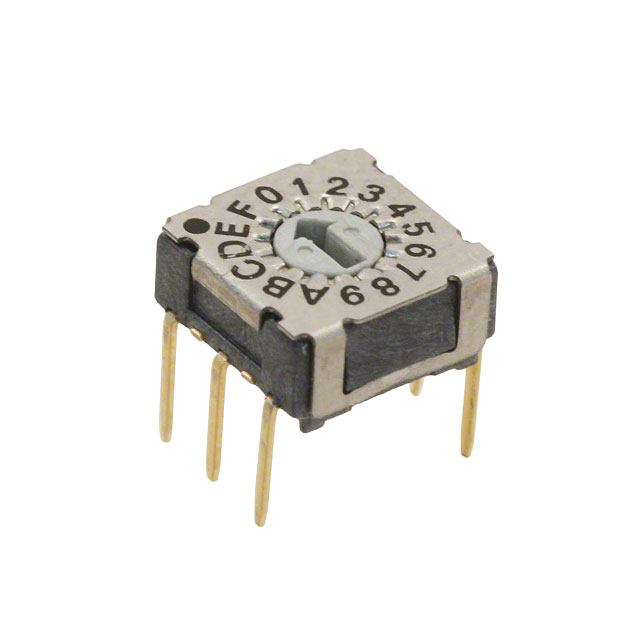

RDMAR16 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY DIP HEX 0.1A 42V
| Part | Mechanical Life | Length | Length | Electrical Life | Pitch | Pitch | Circuit | Washable | Current Rating (Amps) | Voltage Rating | Features | Actuator Level | Number of Positions | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Height Above Board | Height Above Board | Termination Style | Actuator Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 25000 Steps | 7.4 mm | 0.291 in | 25000 Steps | 2.54 mm | 0.1 " | Hexadecimal | 100 mA | 42 VDC | IP67 - Dust Tight Waterproof | Flush Recessed | 16 | Through Hole | -60 °C | 125 °C | 3.66 mm | 0.144 in | PC Pin | Rotary for Tool | Gold |
