146510 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

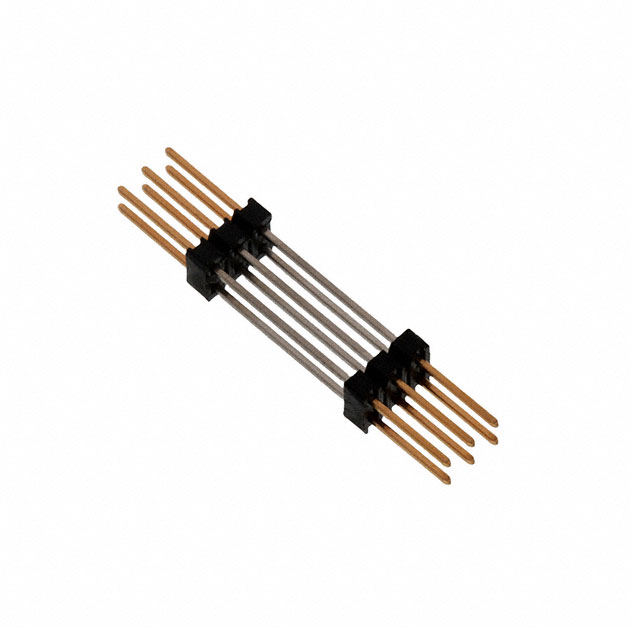

STRAIGHT GOLD 78P 2.54MM DOUBLE ROW BLACK 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Number of Rows	Color	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail	Length - Tail	Mounting Type	Number of Positions	Contact Finish - Post (Mating)
TE Connectivity Raychem Cable Protection 3-146510-9	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	78	Gold
TE Connectivity Raychem Cable Protection 3-146510-8	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	76	Gold
TE Connectivity Raychem Cable Protection 2-146510-3	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	46	Gold
TE Connectivity Raychem Cable Protection 3-146510-6	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	72	Gold
TE Connectivity Raychem Cable Protection 2-146510-7	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	54	Gold
TE Connectivity Raychem Cable Protection 4-146510-0	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	80	Gold
TE Connectivity Raychem Cable Protection 2-146510-6	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	52	Gold
TE Connectivity Raychem Cable Protection 3-146510-2	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	64	Gold
TE Connectivity Raychem Cable Protection 3-146510-0	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	60	Gold
TE Connectivity Raychem Cable Protection 2-146510-9	2.54 mm	0.1 in	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	1.43 in	36.322 mm	Solder	2	Black	0.77 in	19.558 mm	0.33 in	8.382 mm	Through Hole	58	Gold
