213815 Series

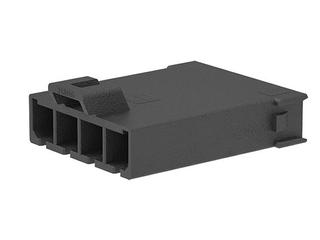

Mega-Fit Plug Housing, Single Row, 4 Circuit, UL 94V-0, Glow-Wire Capable, Free Hanging
Manufacturer: Molex
Catalog
Mega-Fit Plug Housing, Single Row, 4 Circuit, UL 94V-0, Glow-Wire Capable, Free Hanging
Beta
⌘K
Mega-Fit Plug Housing, Single Row, 4 Circuit, UL 94V-0, Glow-Wire Capable, Free Hanging
Mega-Fit Plug Housing, Single Row, 4 Circuit, UL 94V-0, Glow-Wire Capable, Free Hanging
Mega-Fit Plug Housing, Single Row, 4 Circuit, UL 94V-0, Glow-Wire Capable, Free Hanging
| Part | Insulation Material | Features | Contact Termination | Color | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Pitch [x] | Pitch [x] | Connector Type | Fastening Type | Note | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Nylon Polyamide (PA) | Glow Wire Compliant | Crimp | Black | Free Hanging (In-Line) | Male Pin | -40 °C | 120 °C | 1 | 0.224 in | 5.7 mm | Plug | Latch Holder | Contacts Not Included | |
 Molex | Nylon Polyamide (PA) | Glow Wire Compliant | Crimp | Black | Free Hanging (In-Line) | Male Pin | -40 °C | 120 °C | 1 | 0.224 in | 5.7 mm | Plug | Latch Holder | Contacts Not Included | 2 |
 Molex | Nylon Polyamide (PA) | Glow Wire Compliant | Crimp | Black | Free Hanging (In-Line) | Male Pin | -40 °C | 120 °C | 1 | 0.224 in | 5.7 mm | Plug | Latch Holder | Contacts Not Included | 8 |
 Molex | Nylon Polyamide (PA) | Glow Wire Compliant | Crimp | Black | Free Hanging (In-Line) | Male Pin | -40 °C | 120 °C | 1 | 0.224 in | 5.7 mm | Plug | Latch Holder | Contacts Not Included | 4 |
