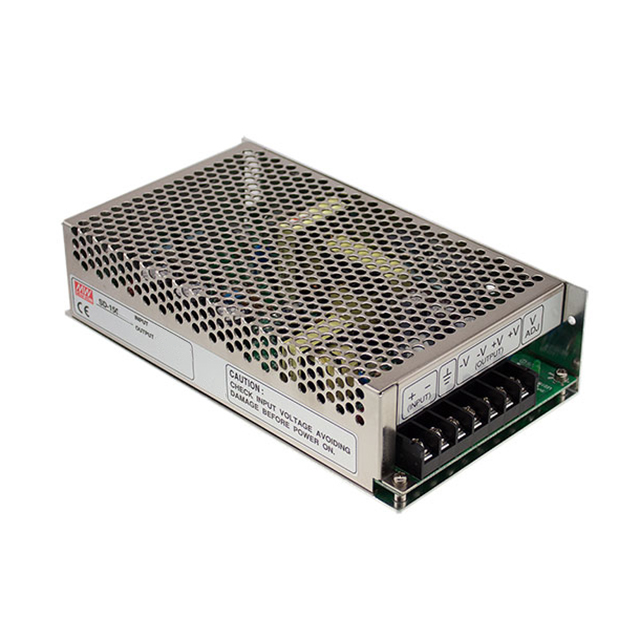

SD-150C Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 24V 151W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Voltage - Isolation | Power (Watts) | Voltage - Output 1 | Applications | Type | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | -10 °C | 60 °C | CE | 1.5 kV | 151 W | 24 V | ITE (Commercial) | Enclosed | 80 % | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | 36 V | 6.3 A | 1 | Chassis Mount | 72 V |
MEAN WELL USA Inc. | -10 °C | 60 °C | CE | 1.5 kV | 150 W | 12 V | ITE (Commercial) | Enclosed | 77 % | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | 36 V | 12.5 A | 1 | Chassis Mount | 72 V |
