GW0YCR-P Series
Manufacturer: ODU
Beta
⌘K

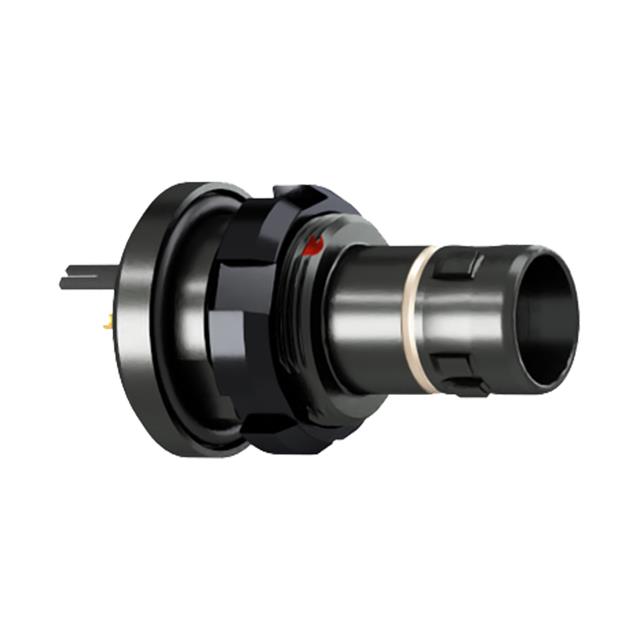

ODU AMC RECEPT, STY W, SZ 0, 7P,
| Part | Insert Material | Contact Finish - Mating | Mounting Feature | Mounting Type | Shielding | Contact Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Number of Positions | Fastening Type | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Primary Material | Shell Size - Insert [custom] | Material Flammability Rating | Orientation | Applications | Color | Voltage Rating | Termination | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Gold | Bulkhead - Front Side Nut | Panel Mount Through Hole | Shielded | Copper Alloy | 2 A | -51 °C | 125 °C | Ruthenium over Electroless Nickel | 7 | Detent Lock Push-Pull | Receptacle Female Sockets | 50 µin | 1.27 µm | IP68 IP69K | Metal | 0 | UL94 V-0 | C | Industrial Medical Military | Silver | 300 VDC | Solder | Aluminum | |
Polyetheretherketone (PEEK) | Gold | Bulkhead - Front Side Nut | Panel Mount Through Hole | Shielded | Copper Alloy | 5 A | -51 °C | 125 °C | Ruthenium over Electroless Nickel | 7 | Detent Lock Push-Pull | Receptacle Female Sockets | 50 µin | 1.27 µm | IP68 IP69K | Metal | 0 | UL94 V-0 | C | Industrial Medical Military | Silver | 300 VDC | Solder | Aluminum |
