9WS0924 Series

Catalog

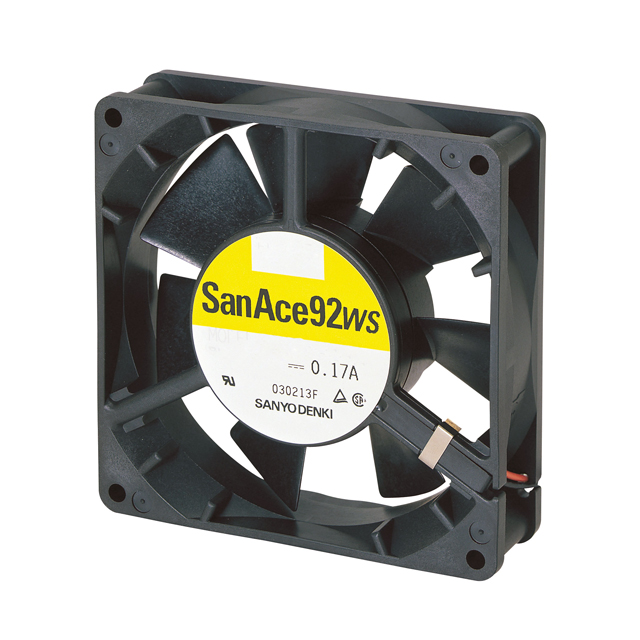

DC FANS DC AXIAL FAN, 92X92X25MM, 24VDC, SPLASH PROOF, LOCKED ROTOR SENSOR, IP54 RATED

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Ingress Protection	Air Flow	Air Flow	Features	Noise	RPM	Weight	Weight	Width [y]	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Approval Agency	Termination	Power (Watts)
Sanyo Denki America Inc. 9WS0924H4D01	Plastic	40000 Hrs	Plastic	100 mA	-20 ░C	70 °C	Tubeaxial	0.181 in H2O	45.1 Pa	IP54 - Dust Protected Water Resistant	48.7 CFM	1.36 m³/min	Locked Rotor Sensor	33 dB(A)	2850 RPM	150.14 g	0.331 lb	25 mm	Ball	92 mm	92 mm	24 VDC	CSA TUV UL	3 Wire Leads	2.4 W
Sanyo Denki America Inc. 9WS0924M401	Plastic	40000 Hrs	Plastic	60 mA	-20 ░C	70 °C	Tubeaxial	0.094 in H2O	23.5 Pa	IP54 - Dust Protected Water Resistant	35.7 CFM	1 m³/min	Speed Sensor (Tach)	27 dB(A)	2100 RPM	150.14 g	0.331 lb	25 mm	Ball	92 mm	92 mm	24 VDC	CSA TUV UL	3 Wire Leads	1.44 W
Sanyo Denki America Inc. 9WS0924F401	Plastic	40000 Hrs	Plastic	70 mA	-20 ░C	70 °C	Tubeaxial	0.13 in H2O	32.4 Pa	IP54 - Dust Protected Water Resistant	41.7 CFM	1.17 mł/min	Speed Sensor (Tach)	30 dB	2450 RPM	150.14 g	0.331 lb	25 mm	Ball	92 mm	92 mm	24 VDC	CSA TUV UL	3 Wire Leads	1.68 W
Sanyo Denki America Inc. 9WS0924L401	Plastic	40000 Hrs	Plastic	50 mA	-20 ░C	70 °C	Tubeaxial	0.067 in H2O	16.7 Pa	IP54 - Dust Protected Water Resistant	28.2 CFM	0.79 mł/min	Speed Sensor (Tach)	23 dB(A)	1700 RPM	150.14 g	0.331 lb	25 mm	Ball	92 mm	92 mm	24 VDC	CSA TUV UL	3 Wire Leads	1.2 W
