2120954 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

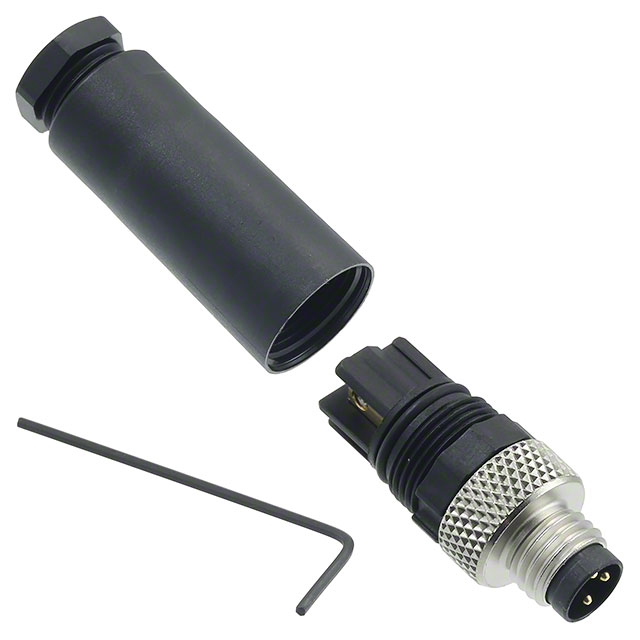

CONN PLUG MALE 3POS GOLD SCREW
| Part | Contact Finish - Mating | Contact Material | Shell Size - Insert | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Color | Shell Material | Shell Finish | Ingress Protection | Features | Connector Type | Termination | Current Rating (Amps) | Insert Material | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | Brass | M8-3 | Free Hanging (In-Line) | Automation Control Industrial Telecommunications | 85 °C | -40 °C | Metal | Black Silver | Zinc Die Cast | Nickel | IP67 - Dust Tight Waterproof | Backshell | Male Pins Plug | Screw | 4 A | Polyamide (PA) Nylon Glass Filled | 60 VAC | |
 TE Connectivity Raychem Cable Protection | Gold | Brass | M8-4 | Free Hanging (In-Line) | Automation Control Industrial Telecommunications | 85 °C | -40 °C | Metal | Black Silver | Zinc Die Cast | Nickel | IP67 - Dust Tight Waterproof | Backshell | Male Pins Plug | Screw | 4 A | Polyamide (PA) Nylon Glass Filled | 30 VAC | 4 |
