NX3L2267 Series

Catalog

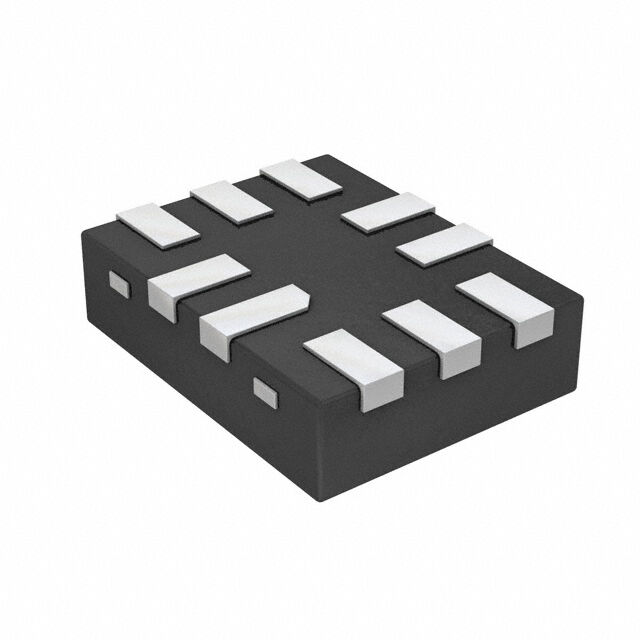

IC SWITCH SPDTX2 750MOHM 10XQFN

Part	Charge Injection	Current - Leakage (IS(off)) (Max)	Switch Circuit	Package / Case	Multiplexer/Demultiplexer Circuit	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	-3db Bandwidth	On-State Resistance (Max) [Max]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Mounting Type
Freescale Semiconductor - NXP NX3L2267SGU,115	37 pC	10 nA	SPDT	10-XFQFN	2:1	2	90 mOhm	35 pF	35 pF	1.8	1.4	10-XQFN	-40 °C	125 °C	60 MHz	750 mOhm	1.4 V	4.3 V	20 ns	40 ns	Surface Mount
Freescale Semiconductor - NXP NX3L2267GU,115	37 pC	10 nA	SPDT	10-XFQFN	2:1	2	90 mOhm	35 pF	35 pF	1.8	1.4	10-XQFN	-40 °C	125 °C	60 MHz	750 mOhm	1.4 V	4.3 V	20 ns	40 ns	Surface Mount
