M39029 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONTACT SOCKET 20-24AWG CRIMP

Part	Contact Finish	Contact Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Grade	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Size	Type	Contact Termination	Qualification	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Size

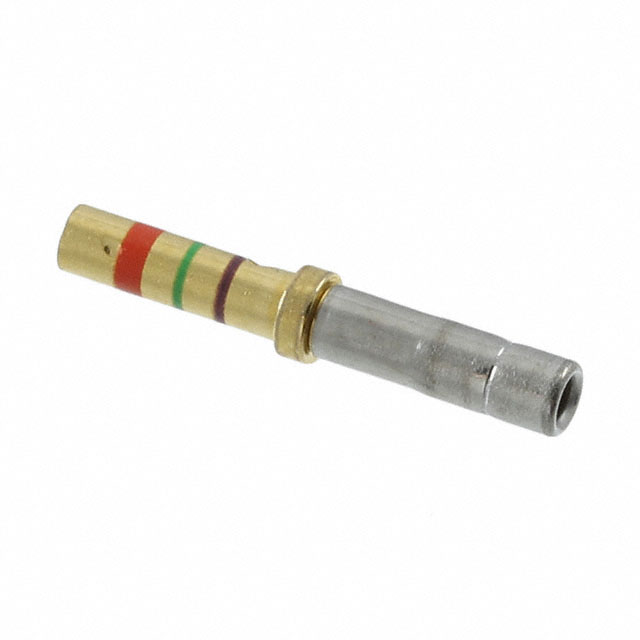

TE Connectivity AMP Connectors M39029/57-357	Gold	Socket	24 AWG	20 AWG	Military	50 µin	1.27 µm	Copper Alloy	20	Signal Machined	Crimp	MIL-C-39029

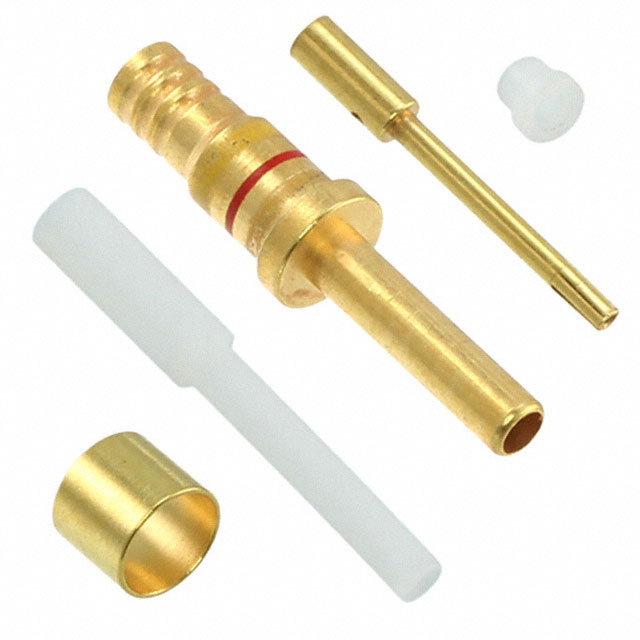

TE Connectivity AMP Connectors M39029/76-426	Gold	Coax Pin Socket Center			Military	50 µin	1.27 µm	Copper Alloy	16	Coaxial	Crimp	MIL-C-39029

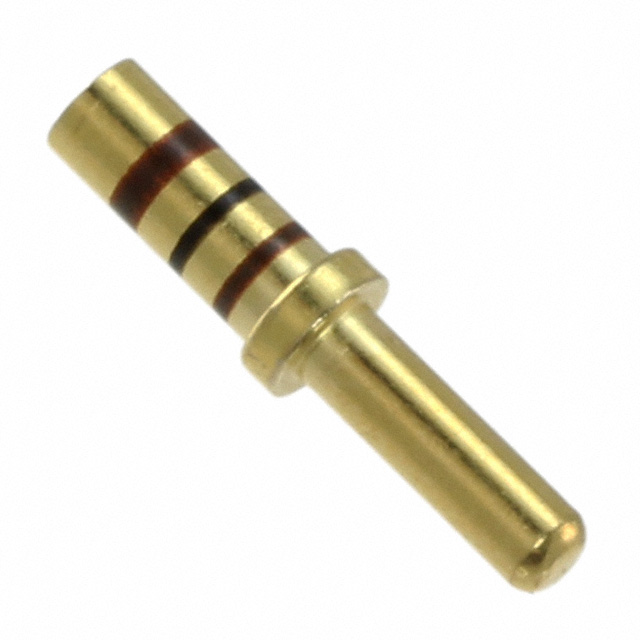

TE Connectivity AMP Connectors M39029/1-101	Gold	Pin	20 AWG	16 AWG	Military	50 µin	1.27 µm	Copper Alloy	16	Power Machined	Crimp	MIL-C-39029
TE Connectivity AMP Connectors M39029/31-240	Gold	Pin	24 AWG	20 AWG	Military	50 µin	1.27 µm	Copper Alloy	20	Power Machined	Crimp	MIL-C-39029
TE Connectivity AMP Connectors M39029/12-148	Gold				Military					Signal	Crimp	MIL-C-39029	26 AWG	22 AWG	Socket
TE Connectivity AMP Connectors M39029/5-118	Gold	Socket	14 AWG	12 AWG	Military	50 µin	1.27 µm	Copper Alloy	12	Power Machined	Crimp	MIL-C-39029
TE Connectivity AMP Connectors M39029/106-616	Gold	Socket	20 AWG	16 AWG	Military	50 µin	1.27 µm	Copper Alloy	16	Signal Machined	Crimp	MIL-C-39029

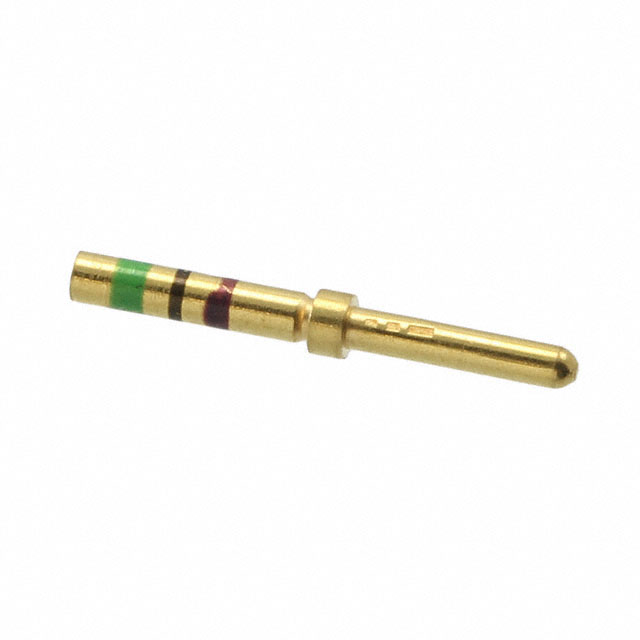

TE Connectivity AMP Connectors M39029/1-507	Gold	Pin	24 AWG	20 AWG	Military	50 µin	1.27 µm	Copper Alloy		Power Machined	Crimp	MIL-C-39029				22D

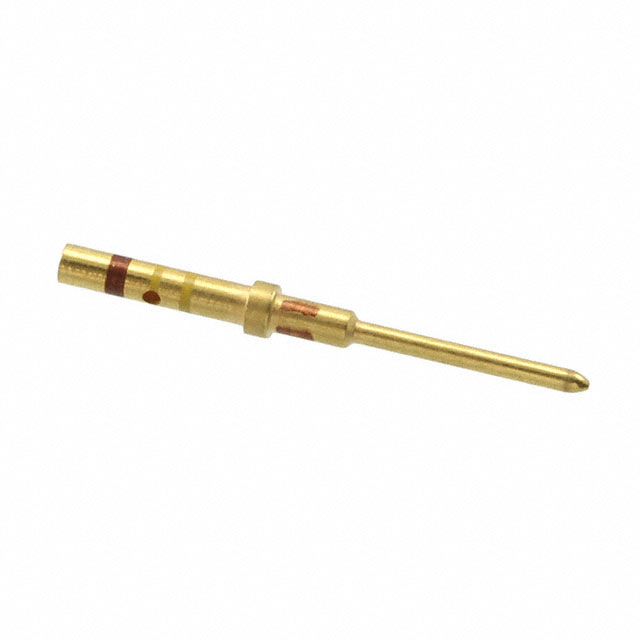

TE Connectivity AMP Connectors M39029/11-144	Gold				Military	50 µin	1.27 µm			Signal	Crimp	MIL-C-39029	26 AWG	22 AWG	Pin
TE Connectivity AMP Connectors M39029/91-530	Gold	Socket			Military	50 µin	1.27 µm	Copper Alloy	8	Twinax Concentric	Crimp	MIL-C-39029
