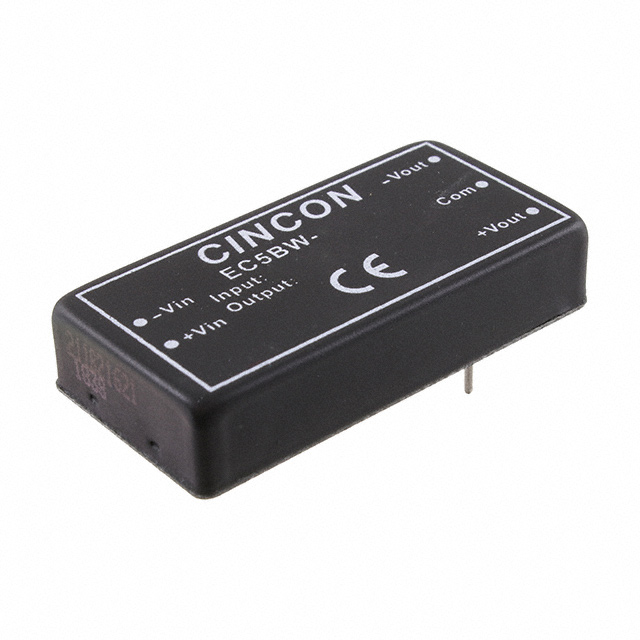

EC5BW Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
CONVERTER: DC/DC; 15W; UIN: 9÷36VDC; UOUT: 5VDC; 5V; IOUT: 3A; DIP; THT
| Part | Number of Outputs | Current - Output (Max) [Max] | Standard Number | Efficiency | Package / Case | Voltage - Input (Min) [Min] | Type | Power (Watts) | Voltage - Output 1 | Size / Dimension | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Approval Agency | Voltage - Input (Max) [Max] | Applications | Control Features | Current - Output (Max) [Max] | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 1 | 3 A | 60950-1 | 87 % | 6-DIP Module | 9 V | Isolated Module | 15 W | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP Remote On/Off SCP UVLO | CE | 36 V | ITE (Commercial) | Active High Enable | |||
Cincon Electronics Co. LTD | 1 | 4 A | 60950-1 | 87 % | 6-DIP Module | 9 V | Isolated Module | 13 W | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP Remote On/Off SCP UVLO | CE | 36 V | ITE (Commercial) | Active High Enable | |||
Cincon Electronics Co. LTD | 2 | 625 mA | 60950-1 | 87 % | 6-DIP Module | 18 V | Isolated Module | 15 W | 12 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP SCP UVLO | CE | 75 V | ITE (Commercial) | 625 mA | -12 V | ||
Cincon Electronics Co. LTD | 1 | 4 A | 60950-1 | 88 % | 6-DIP Module | 18 V | Isolated Module | 13 W | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP Remote On/Off SCP UVLO | CE | 75 V | ITE (Commercial) | Active High Enable | |||
Cincon Electronics Co. LTD | 2 | 60950-1 | 87 % | 6-DIP Module | 18 V | Isolated Module | 15 W | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP Remote On/Off SCP UVLO | CE | 75 V | ITE (Commercial) | Active High Enable | -15 V | 500 mA | ||
Cincon Electronics Co. LTD | 2 | 60950-1 | 88 % | 6-DIP Module | 9 V | Isolated Module | 15 W | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP SCP UVLO | CE | 36 V | ITE (Commercial) | -15 V | 500 mA | |||
Cincon Electronics Co. LTD | 1 | 4 A | 60950-1 | 88 % | 6-DIP Module | 18 V | Isolated Module | 13 W | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP SCP UVLO | CE | 75 V | ITE (Commercial) | ||||
Cincon Electronics Co. LTD | 2 | 60950-1 | 85 % | 6-DIP Module | 9 V | Isolated Module | 15 W | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP Remote On/Off SCP UVLO | CE | 36 V | ITE (Commercial) | Active High Enable | -5 V | 1.5 A | ||
Cincon Electronics Co. LTD | 2 | 60950-1 | 85 % | 6-DIP Module | 18 V | Isolated Module | 15 W | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP SCP UVLO | CE | 75 V | ITE (Commercial) | -5 V | 1.5 A | |||
Cincon Electronics Co. LTD | 1 | 3 A | 60950-1 | 87 % | 6-DIP Module | 9 V | Isolated Module | 15 W | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.5 kV | -40 °C | 85 °C | Through Hole | OCP OVP SCP UVLO | CE | 36 V | ITE (Commercial) |
