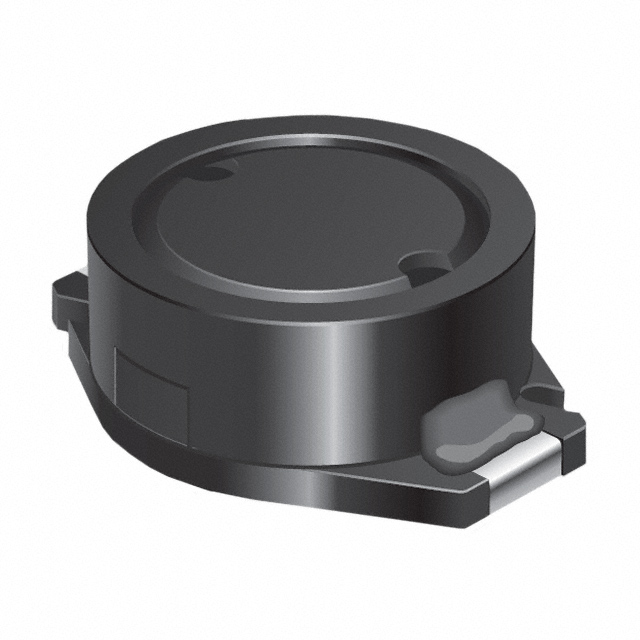

SRR0804 Series

Catalog

INDUCTOR,FERRITE,470UH,10+% TOL,10-% TOL,4132-CASE

Part	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Tolerance	Current - Saturation (Isat)	Current Rating (Amps)	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Type	Material - Core	Inductance	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRR0804-471K	3.6 Ohm	4 MHz	10 %	280 mA	160 mA	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded	796 kHz	60	Drum Core Wirewound	Ferrite	470 µH
Bourns Inc. SRR0804-180Y	190 mOhm	23 MHz	15 %		900 mA	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded			Drum Core Wirewound	Ferrite	18 µH	2.52 MHz 35
Bourns Inc. SRR0804-181K		6 MHz	10 %	450 mA	0.28 A	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded			Drum Core Wirewound	Ferrite	180 µH	53 796 kHz	1.45 Ohm
Bourns Inc. SRR0804-120M		28 MHz	20 %	1.9 A	1.1 A	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded			Drum Core Wirewound	Ferrite	12 µH	2.52 MHz 38	150 mOhm
Bourns Inc. SRR0804-820K	800 mOhm	10 MHz	10 %	730 mA	400 mA	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded			Drum Core Wirewound	Ferrite	82 µH	2.52 MHz 20
Bourns Inc. SRR0804-121K	1 Ohm	8.5 MHz	10 %	550 mA	350 mA	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded			Drum Core Wirewound	Ferrite		50 796 kHz
Bourns Inc. SRR0804-271K	2.1 Ohm	5.5 MHz	10 %	350 mA	0.22 A	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded			Drum Core Wirewound	Ferrite	270 µH	50 796 kHz
Bourns Inc. SRR0804-470K	460 mOhm	14 MHz	10 %	950 mA	0.55 A	Nonstandard	Surface Mount	125 °C	-40 C	0.315 in	10.5 mm	0.413 in	8 mm	1 kHz	Shielded	2.52 MHz	24	Drum Core Wirewound	Ferrite	47 µH
