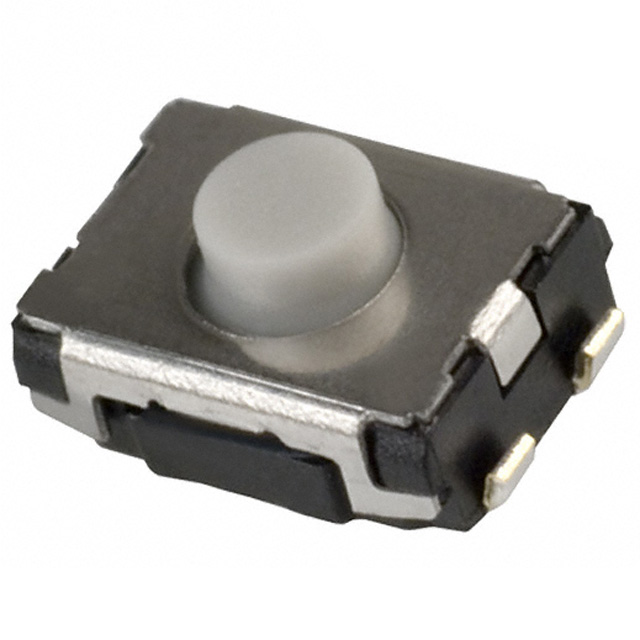

EVQ-3P Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Switch Travel	Outline [y]	Outline [x]	Actuator Type	Mounting Type	Switch Function	Actuator Height off PCB, Vertical [z]	Circuit	Contact Rating @ Voltage [x]	Operating Force	Termination Style	Actuator Orientation	Mechanical Life	Illumination	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Industrial Automation Sales EVQ-3P2F02K	0.7 mm	3.5 mm	4.7 mm	Standard	Surface Mount	Off-Mom	2.5 mm	SPST-NO	0.02 A 15 VDC	510 gf	J Lead	Top Actuated	200000 Cycles	Non-Illuminated	85 °C	-40 °C
Panasonic Industrial Automation Sales EVQ-3P202K	0.7 mm	3.5 mm	4.7 mm	Standard	Surface Mount	Off-Mom	2.5 mm	SPST-NO	0.02 A 15 VDC	0.5 kgf	J Lead	Top Actuated	200000 Cycles	Non-Illuminated	85 °C	-40 °C
