V48SC Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC/DC CONVERTER, 1/16 BRICK, 3.3VOUT, 15A

Part	Mounting Type	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Control Features	Power (Watts)	Features	Applications	Standard Number	Package / Case	Voltage - Isolation	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Delta Electronics V48SC3R315NNFA	Through Hole	15 A	Sixteenth Brick	75 V	1	91.5 %	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	Isolated Module	3.3 V	85 °C	-40 C	36 V	Active Low Enable	50 W	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	60950-1	Sixteenth Brick	1.5 kV

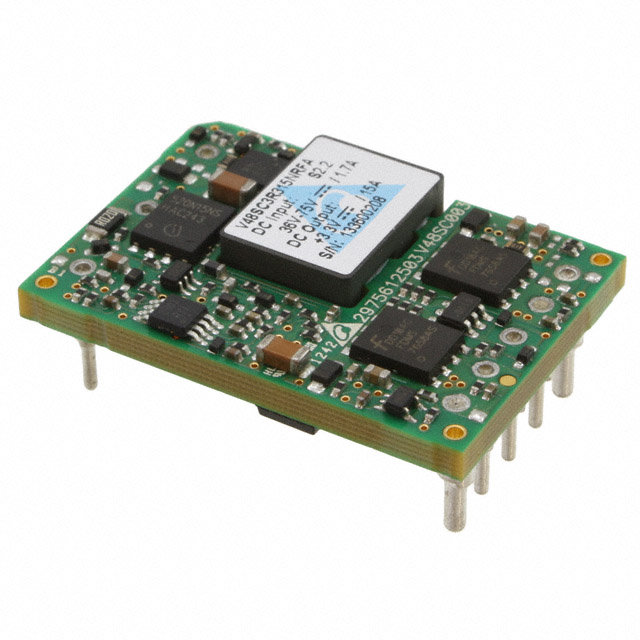

Delta Electronics V48SC3R315NRFA	Through Hole	15 A		75 V	1	91.5 %	33 mm	12.7 mm	1.3 in	12.7 mm	22.86 mm	22.9 mm	Isolated Module	3.3 V	85 °C	-40 C	36 V	Active Low Enable	50 W	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)		8-DIP Module 1/16 Brick	1.5 kV

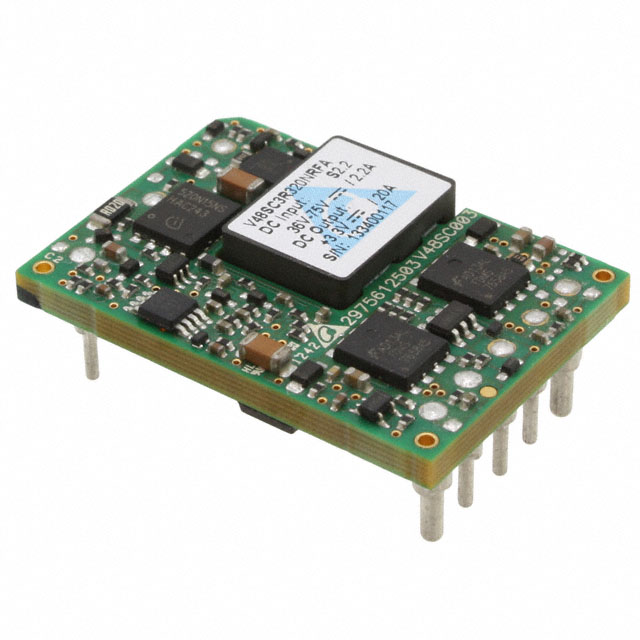

Delta Electronics V48SC3R320NRFA	Through Hole	20 A		75 V	1	91 %	33 mm	12.7 mm	1.3 in	12.7 mm	22.86 mm	22.9 mm	Isolated Module	3.3 V	85 °C	-40 C	36 V	Active Low Enable	66 W	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)		8-DIP Module 1/16 Brick	1.5 kV

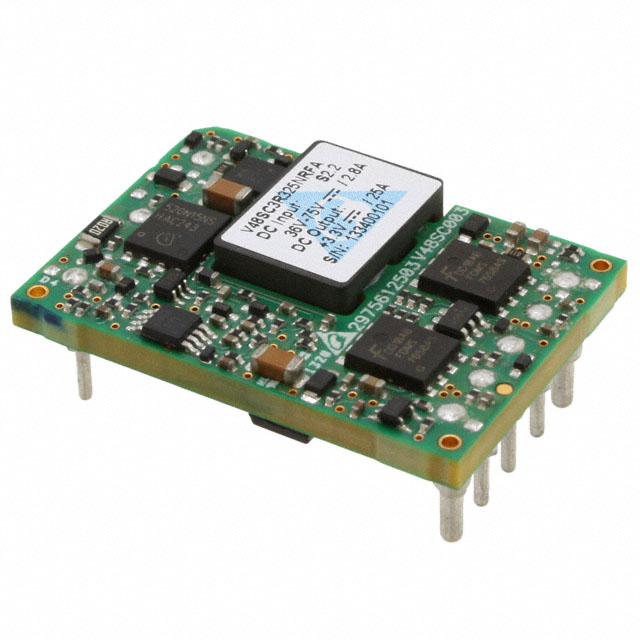

Delta Electronics V48SC3R325NRFA	Through Hole	25 A		75 V	1	90 %	33 mm	12.7 mm	1.3 in	12.7 mm	22.86 mm	22.9 mm	Isolated Module	3.3 V	85 °C	-40 C	36 V	Active Low Enable	83 W	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)		8-DIP Module 1/16 Brick	1.5 kV
Delta Electronics V48SC05013NRFA	Through Hole	13 A		75 V	1	91.5 %	33 mm	12.7 mm	1.3 in	12.7 mm	22.86 mm	22.9 mm	Isolated Module	5 V	85 °C	-40 C	36 V	Active Low Enable	65 W	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)		8-DIP Module 1/16 Brick	1.5 kV
Delta Electronics V48SC05017NRFA	Through Hole	17 A		75 V	1	91.5 %	33 mm	12.7 mm	1.3 in	12.7 mm	22.86 mm	22.9 mm	Isolated Module	5 V	85 °C	-40 C	36 V	Active Low Enable	85 W	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)		8-DIP Module 1/16 Brick	1.5 kV
Delta Electronics V48SC06511NRFA	Through Hole	11 A	Sixteenth Brick	75 V	1	91 %			33 mm	8.7 mm	22.8 mm		Isolated Module		85 °C	-40 C	36 V	Active Low Enable	70 W	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	60950-1 62368-1	Sixteenth Brick	1.5 kV	CSA EN IEC UL	1.3 in	0.34 in	0.9 in
