Automotive Standard Rectifier Diode (AEC-Q101 Qualified)
Automotive Standard Rectifier Diode (AEC-Q101 Qualified)
Automotive Standard Rectifier Diode (AEC-Q101 Qualified)
| Part | Speed [Min] | Mounting Type | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Qualification | Technology | Supplier Device Package | Grade | Current - Reverse Leakage @ Vr | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

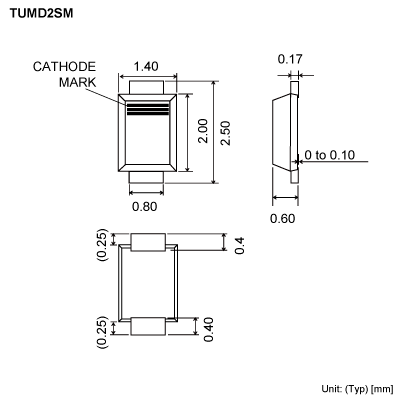

 Rohm Semiconductor | 200 mA 500 ns | Surface Mount | 2-SMD Flat Leads | 600 V | AEC-Q101 | Standard | TUMD2SM | Automotive | 1 µA | 700 mA | 1.1 V | 150 °C |
