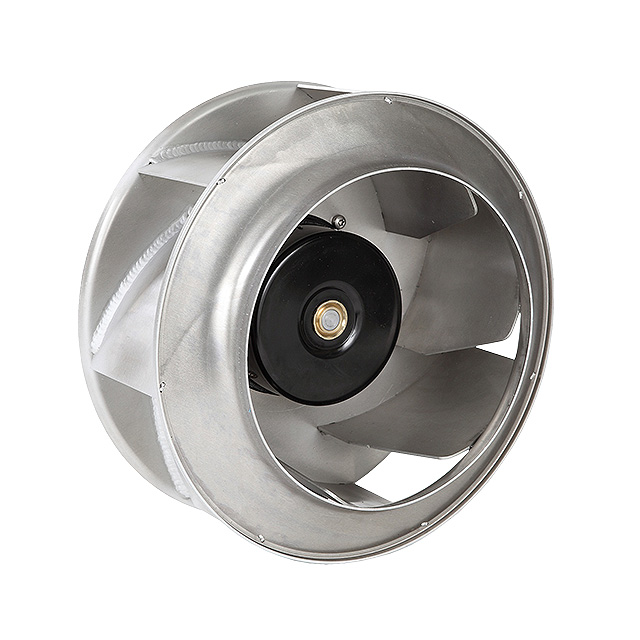

GTB036 Series

Catalog

FAN BLWR CENT 360X230MM 230VAC

Part	Material - Frame	Lifetime @ Temp.	Material - Blade [custom]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Static Pressure	Static Pressure	Bearing Type	Air Flow	Air Flow	Weight	Weight	Approval Agency	Features	Ingress Protection	Voltage - Rated	Fan Type	Noise	RPM	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Termination
Delta Electronics GTB036FUC23R N1	Aluminum	40 °C 60000 Hrs	Aluminum	3.6 A	277 VAC	200 VAC	320 W	360 mm	Round	2.016 in H2O	502.2 Pa	Ball	2473 CFM	69.24 m³/min	16 lbs	7.3 kg	cUL TUV UL	PWM Control	IP54 - Dust Protected Water Resistant	230 VAC	Motorized Impellers	72 dB(A)	1730 RPM	229.6 mm	-25 °C	60 °C
Delta Electronics GTB036PUD25R	Aluminum	40 °C 60000 Hrs	Aluminum	1.75 A	480 VAC	380 VAC	648 W	360.2 mm		3.33 in H2O	829.5 Pa	Ball	3054 CFM	85.51 m³/min			cUL TUV UL	PWM Control Speed Sensor (Tach)	IP54 - Dust Protected Water Resistant	400 VAC	Motorized Impellers	80 dB(A)	2200 RPM	250.8 mm	-25 °C	60 °C	23 lbs	10.4 kg	Terminal Block
Delta Electronics GTB036PUD25R N1	Aluminum	40 °C 60000 Hrs	Aluminum	1.75 A	480 VAC	380 VAC	648 W	360.2 mm		3.33 in H2O	829.5 Pa	Ball	3054 CFM	85.51 m³/min			cUL TUV UL	PWM Control Speed Sensor (Tach)	IP54 - Dust Protected Water Resistant	400 VAC	Motorized Impellers	80 dB(A)	2200 RPM	250.8 mm	-25 °C	60 °C	23 lbs	10.4 kg	Terminal Block
Delta Electronics GTB036FUC21R	Aluminum	40 °C 60000 Hrs	Aluminum	3.62 A	277 VAC	200 VAC	510 W	360 mm	Round	2.685 in H2O	668.8 Pa	Ball	2159 CFM	60.45 m³/min	12 lbs	5.4 kg	cUL TUV UL	PWM Control	IP54 - Dust Protected Water Resistant	230 VAC	Motorized Impellers	78 dB(A)	2100 RPM	210.2 mm	-25 °C	60 °C
Delta Electronics GTB036FUC23R	Aluminum	40 °C 60000 Hrs	Aluminum	3.6 A	277 VAC	200 VAC	320 W	360 mm	Round	2.016 in H2O	502.2 Pa	Ball	2473 CFM	69.24 m³/min	16 lbs	7.3 kg	cUL TUV UL	PWM Control	IP54 - Dust Protected Water Resistant	230 VAC	Motorized Impellers	72 dB(A)	1730 RPM	229.6 mm	-25 °C	60 °C
Delta Electronics GTB036FUC21R N1	Steel	40 °C 60000 Hrs	Aluminum	3.62 A	277 VAC	200 VAC	510 W	360 mm	Round	2.685 in H2O	668.8 Pa	Ball	2159 CFM	60.45 m³/min	14 lbs	6.4 kg	cUL TUV UL	PWM Control	IP54 - Dust Protected Water Resistant	230 VAC	Motorized Impellers	78 dB(A)	2100 RPM	210.2 mm	-25 °C	60 °C
