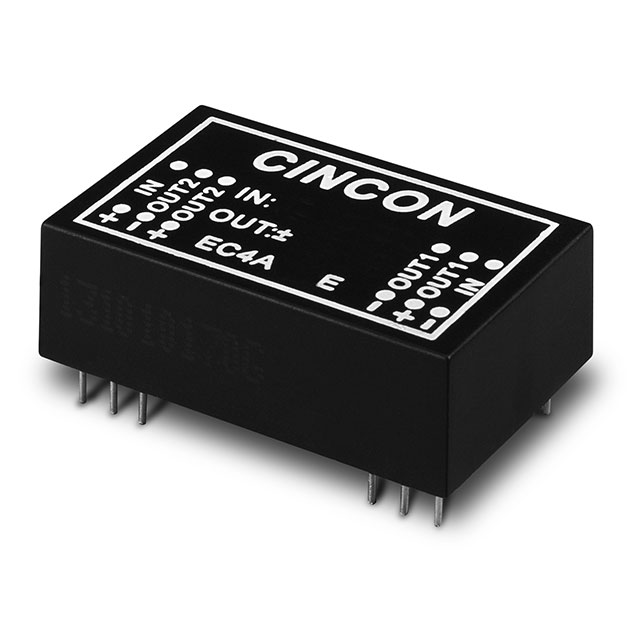

EC4A16 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
DC DC CONVERTER +/-5V 5W
| Part | Applications | Voltage - Input (Min) [Min] | Type | Standard Number | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Mounting Type | Features | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) | Voltage - Output 2 | Voltage - Isolation | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ITE (Commercial) | 18 V | Isolated Module | 60950-1 | 5 V | -40 °C | 100 °C | 5 W | Through Hole | SCP UVLO | 2 | 36 V | 500 mA | -5 V | 3000 V | 24-DIP Module 14 Leads | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | CE cURus | |
 Cincon Electronics Co. LTD | ITE (Commercial) | 18 V | Isolated Module | 60950-1 | 5 V | -25 °C | 71 °C | 5 W | Through Hole | SCP | 2 | 36 V | 500 mA | -5 V | 3000 V | 24-DIP Module 14 Leads | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | CE cURus | 80 % |
